Buytool Horizontal Double Shear Scissor with Large Platform Scissor Lift

Product Description

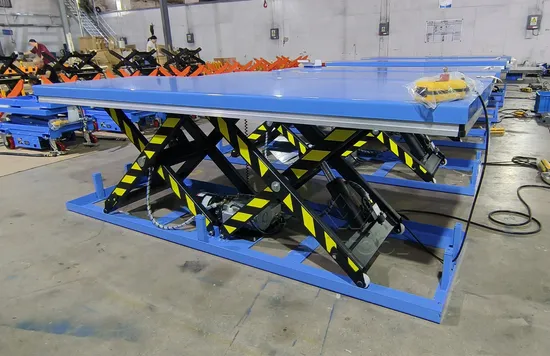

Scissor Lift Table with Large Platform
Product Description
Large platform for special size materials.
Heavy duty design.
Meet EN1570 norm and ANSI/ASME safety standard.
These models can be used in above-floor or in-floor pit applications. Features
Standard Safety Faetures:
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tention(24V)control box with up-down buttons.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features:
Self lubricating bushings on pivot points.
Removable lifting eye to facilitable handling and lift table installation. Product Parameters

Model	HW2000D	HW4000D	HW8000D
Capacity (kg)	2000	4000	8000
Lowered Height (mm)	205	230	240
Raised Height (mm)	1000	1000	1050
Platform Size L×W (mm)	2500×820	2500×850	3000×1200
Net Weight (kg)	265	360	420

Detailed Photos
Display Of Real Photography
Packaging & Shipping
Range Of Application
FAQ
Q: What about the quality of the lift tables?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our lift tables carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.

---
