Wire mesh manufacturing machine

Product Details

Product Description

Product Description
lanyingmachine

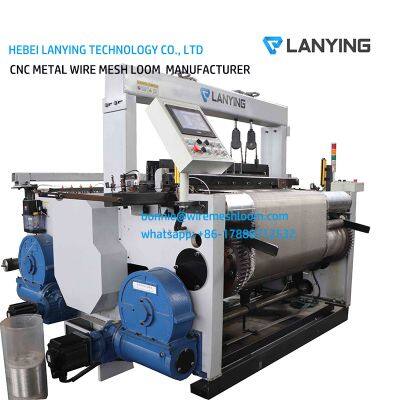

SG160 Series weaving machine
SG160 Series CNC metal wire mesh weaving machine is designed for heavy wire mesh weaving. The opening is small, and mesh surface is flat, there are single beat-up form and double beat-up form.

Product Series	SG100 Series	SG130 Series	SG160 Series	SG180 Series
Standard weaving width (Special width on request)	1300mm 1600mm 2000mm	1300mm 1600mm 2000mm 2500mm 3000mm	1300mm 1600mm 2000mm 2500mm 3000mm	1300mm 1600mm 2000mm 2500mm 3000mm 4000mm
Wire diameter range	0.016-0.3mm	0.06-0.45mm	0.1-0.7mm	0.2-2.1mm
Plain weave square hole (mesh/inch)	40-400	20-260	10-100	6-60
Twill weave (mesh/inch)	≤600	≤400	≤350	≤260
Wire material	Stainless steel, iron, copper, aluminum, platinum, nickel, polyester	Stainless steel, iron, copper, aluminum, platinum, alloy, nickel, polyester	Stainless steel, iron, copper, aluminum, platinum,alloy, nickel, polyester	Stainless steel, iron,copper, aluminum, alloy, nickel, polyester
Speed (the actual speed depends on the weaving width and specs)	100 rpm （max 120rpm）	100 rpm （max120rpm）	50-70 rpm	35-50 rpm

ire diameter	0.1-0.7mm
Weaving density	Plain weave square hole 10-100mesh/inch; twilled weave up to 350mesh/inch
Nominal width (special width on request)	1.3m	1.6m	2m	2.5m	3m
Speed(the actual speed depends on the weaving specs and width)	60-70RPM	60-70RPM	50-60RPM	45-55RPM	40-45RPM
Total power	10.5KW	12KW	12.5KW	13.5KW	17KW
Size (L*W*H) mm	2700X3300X1960	3000X3600X1960	2800X4000X2150	2800X4500X2150	2800X4800X2150
Weight	6300KG	7000KG	8500KG	9500KG	12000KG
Basic tension	40000 N/m

---
