PU Rod for Seals Processing

Product Description

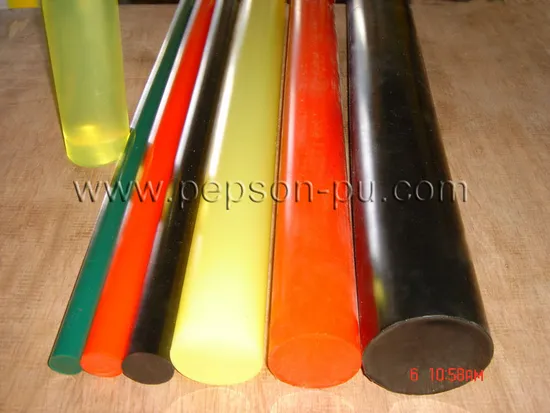

PU Rod ( Hollow Rod, PU Pipe )
Details:
A) Our Board rod has excellent wear resistance, tear resistance and elasticity, can produce different thickness and diameter, length and breadth of products, such as sheet metal is mainly used for buffering, compression, bearing, etc., such as used in the molding equipment, sandblasting room, iron and steel factory, ceramics factory, electronics, food, construction and other needs of flexibility and abrasion resistance PU board the workplace. Plate bar sheet can also be used for processing into a variety of seals, buffer components, and other miscellaneous items such as the need to use the shape properties of polyurethane products.
B) Normally PPG-TDI-MOCA system
C) Products could be produced according to clients requirement with various irregular Rod, Board, Sheet etc.
D) Diameter:
1. Dia. 8mm-350mm, Length 300mm\500mm and 1000mm
2. Harndness Shore A 20~98A
F)Hollow Rod
1 Dia. 20mm-350mm, Length 300mm\500mm
2 Hardness Shore A 20~98A
Mainly used as a spring and stamping dies, have a dampening effect. Make flexible parts, mainly used in the press and other mechanical devices that can protect equipment from damage, can ensure product quality. PU rods are used in many industries and can be machined, fabrication of parts and components needed.

PU Solid Rod
Diameter	Length(mm)	Weight :kg/pc	Diameter	Length(mm)	Weight :kg/pc
			Φ8	300	0.017
Φ18	500	0.14	Φ10	300	0.028
Φ20	500	0.19	Φ12	300	0.041
Φ22	500	0.23	Φ14	300	0.055
Φ25	500	0.25	Φ15	300	0.064
Φ28	500	0.34	Φ16	300	0.072
Φ30	500	0.38	Φ18	300	0.083
Φ32	500	0.45	Φ20	300	0.111
Φ35	500	0.55	Φ22	300	0.136
Φ40	500	0.70	Φ25	300	0.150
Φ45	500	0.88	Φ30	300	0.276
Φ50	500	1.14	Φ35	300	0.330
Φ55	500	1.35	Φ40	300	0.417
Φ60	500	1.68	Φ45	300	0.528
Φ65	500	1.85	Φ50	300	0.674
Φ70	500	2.30	Φ55	300	0.810
Φ75	500	2.60	Φ60	300	1.008
Φ80	500	2.75	Φ65	300	1.110
Φ85	500	3.00	Φ70	300	1.380
Φ90	500	3.65	Φ75	300	1.560
Φ95	500	4.00	Φ80	300	1.680
Φ100	500	4.30	Φ85	300	1.89
Φ110	500	5.46	Φ90	300	2.190
Φ120	500	6.50	Φ95	300	2.400
Φ130	500	7.63	Φ100	300	2.63
Φ150	500	10.15	Φ110	300	3.19
Φ160	500	11.25	Φ120	300	3.79
Φ180	500	14.25	Φ150	300	5.93
Φ200	500	17.58	Φ160	300	6.75
Φ220	500	21.28	Φ180	300	8.63
Φ250	500	27.47	Φ200	300	10.55
Φ280	500	34.46	Φ220	300	12.77
Φ300	500	39.56	Φ250	300	16.49

---
