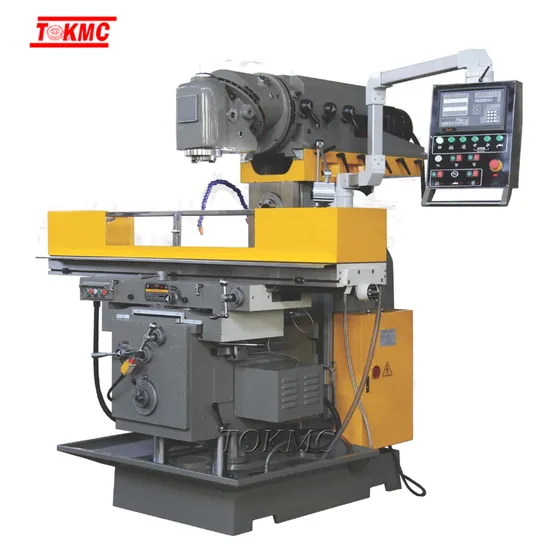

| Model | TUM1490A |
| Spindle Taper | 7:24 ISO 50 V /H |
| Distance from Spindle to Column surface | 200-1000mm vertical milling head |
| Distance from Spindle Nose to Table Surface | 210-700mm vertical milling head |
| Max.Distance from Spindle Center to Table Surface(H) | 0~500 mm horizontal |
| Distance from Spindle Center to Table Surface | 280-1160mm vertical head |
| Spindle Speed Range | 50-1520 rpm V
60-1850 r.p.m H |
| Table Size | 2000×360mm |
| Worktable Swivel Angle | ±45° |
| Table Travel | 1620mm |
| Cross | 400mm |
| Vertical | 500mm |
| X,Y axis Feeding | 22.4-560mm/min 8steps |
| Z axis Feeding | 11.2-280mm/min 8steps |
| T-slots of Table | 3 |
| Width | 18mm |
| Distance | 80mm |
| Main Motor | 5.5kw/7.5 kw |
| Feeding Motor | 1.1kw |
| Coolant Pump Motor | 40w |
| Overall Dimensions | 2300×2700×2300mm |
| Net Weight | 4100kg |
