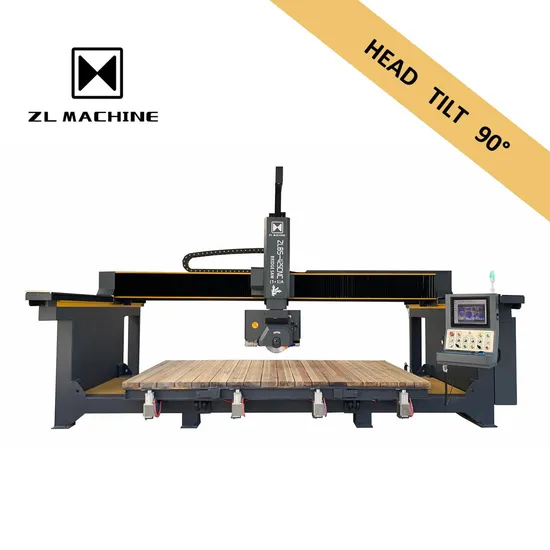

5+1 Axis CNC Bridge Saw Marble Granite Stone Cutting Machinery Stone Cutter with Vacuum Milling Route and Camera for Kitchen Countertop with Factory Good Price

Product Description

Product Parameters

Model	5+1 Axis CNC bridge saw	Unit
Worktable size	L3500*W2000	mm
Maximum cutting	L3500*W2000*H90	mm
Maximum chamfering	L3500*W2000*H60	mm
Blade diameter	350-425	mm
Main motor power	22(permanet magnet motor with frequency)	kw
Router power	5.5	kw
Control center	industry computer with CNC
Controller brand	own CNC system or ESA system from Italy
Driving motor	Servo motor
Router max speed	24000	RPM
Total power	35	kw
Suction cup lifting weight	200	kg
Head rotate	0°-360°
Head tilt	0°-90°
Cylinders	5	group
Dimensions	L5750*W3260*H3800	mm
Water consumption	2	m³/h
Total weight	5.4	t
Main part delivered size	5750x2200x2500	mm
Machine delivered method	Main part delivered as whole(HQ container)

Product Description
For processing marble, granite, porcelain, and quartz stone countertops, we provide CNC Bridge Saws of the ZLBS-425CNC/(5+1) A type. It is a precise, effective, and user-friendly machine. The operator begins processing after taking a picture of the plate and adding the drawing layout to the image. Saw blades, milling cutters, suction cups, and pressure plate cylinders will automatically generate combined processing steps according to the program. Before the milling cutter works, the program will automatically control the cylinders to press the plate. When the milling cutter is over, the cylinders will automatically drop, which is convenient for saw cutting.If the blade-cutting path conflicts, the suction cup can help.Additionally, conventional cross and straight slices of plates, various polygons, circles, ovals, and maws, as well as L-shaped countertops and four-sided under-hung countertops, are all cut and chamfer using the CNC Bridge Saw. The basin, faucet, and inner angles are all processed by the miller. Therefore, the machine is used to help install countertops without any dust. We also provide OEM/ODM production machine service; if you require anything, feel free to contact us.

1: The machine is a conjoined structure; it takes up less space and is easy to install and move.
2: This machine has an excellent chamfering range of 3500x2000mm.
3: With an industrial computer and a 17" color touch-screen.
4: Use a camera to locate the position of the plate and display it in the cutting procedure.
5: The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
6: An automatic tool setting gauge is equipped that automatically checks the blade.
7: The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
8: The worktable can be flipped up to 85°.
9: A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
10: Option: the machine chassis could be hot-dip galvanized (ADD2000USD), and the worktable could be faced with plastic plate and rubber (ADD1000USD).
