3200mm Altendorf Structure Sliding Table/Panel Saw Wood Cutting Machine

Product Description

TS-320 Specification			Packages
Sliding table size	mm	3200-415	Main machine	mm	2200x1150x890
Max. cutting length	mm	3200	Sliidng table	mm	3250x450x270
Max. cutting width	mm	1250	Valtage
Main saw blade diameter	mm	Ø300	Standard:380V 50Hz 3 phase
Scoring saw blade diameter	mm	Ø120	Special voltage should be mentioned before ordering
Max. cutting thickness at 90°	mm	85	Quantity of container loading
Max. cutting thickness at 45°	mm	60	20GP	sets	10
Main saw shaft diameter	mm	Ø30	40HC	sets	28
Scoring saw shaft diamete	mm	Ø20
Main saw rotating speed	mm	4000/5000
Scoring saw rotating speed	rpm	8000
Main saw motor power	rpm	5.5KW
Scoring saw motor power	KW	1.1KW
Dimension	mm	3200x3200x850
Weight	KGS	750

High-strength body frame Solid welded body frame is made by laser cutting steel plate, all the joints adopt tenoning type, with good appearance and high strength. Before powder painting, the entire body has been done sand blasting treatment, to ensure the powder adhesion, also can remove the internal stress after welding.
Saw unit details:
1.Saw unit frame with machined 20mm steel plate,to ensure the stable working performance.
2.Main saw motor is 5.5KW, scoring saw motor is 1.1KW, all motor is pure copper one.
3.Main saw adopts electric elevating through linear guide way, which is much more smooth.
Saw unit tilting structure Saw shaft details
Traditional tongue and groove quadrant connection Low noise shaft with dust-proof cover, to extend using life.

Altendorf type aluminum sliding table
Adopts special designed sliding table, length is 3200mm, width is 415mm. With solid connected round bar on the side, to enhance the strength of cross cutting carriage.
The table adopts double chambers structure, which is more rigid than the traditional sliding table.
The table equipped with step locking system, which allows you to lock on any position according to your requirement.t

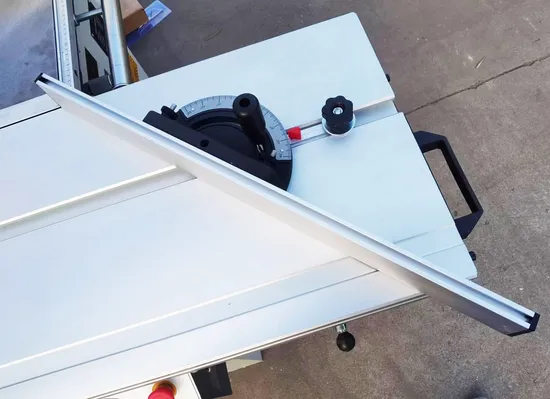

Mitre fence on sliding table (standard)
Enable the precise cutting of mitre, the user can set the angle freely according to the angle scale.

Large mitre fence (*optional) Pull-out core Details The large mitre fence which is much more strong, According to the cutting size, the core of cross-cutting also comes with the flip-over stops. fence can be pulled out, to get the extended gauge.

Rip fence structure
The rip fence is composed by fence base and Aluminum profile.
The fence with locking handle and micro-adjusting knob.

Digital read-out device(*optional)
Digital read-out device can help the user to set the exact value of the rip fence and flip-over stops.

Overhead extraction hood (*optional)
Considering the efficiency dust extraction and safe operation, the machine can choose the overhead extraction hoods, with strong support frame, with folding connection, allow the user to fold up the hood freely.
Electric elevating of main saw (*optional)
Equipped with electric elevating structure, the operator can do the main saw electric elevating through knob.

1. What's your guarantee? Which type after sale service can you provide to us?All the machine, we can offer the 1 year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, Fedex or air shipment urgently. After sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer the rapid action to your concerns.2. Which type payment term can you accept? How could we keep our capital safe?We can accept the T/T and L/C at sight. We have more than 10 years exporting experience, so we know more about the capital safty concern of our customer. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side?The leading time of most common machines, will be 10-25 days after collecting the down payment / copy of L/C. Specially designed production will take little bit longer time.4. Can you accept some O.E. M service to us? or any other service could you do for us?We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.

---
