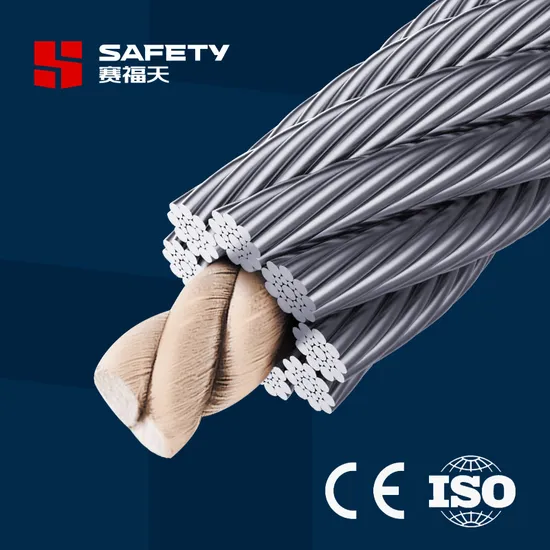

8*19 S FC Iwrc Elevator Steel Cable for Lifting Traction Hoisting 8X19 Seale 8mm 10mm 12mm 16mm 1370/1770 Factory

Product Description

Why us
Jiangsu Safety Wire Rope Co., Ltd. was established in June 2005, with a registered capital of 34 million USD, and 582 employees. We went public on Shanghai Stock Exchange in China on March 31, 2016 with the stock code: 603028. The factory covers an area of 102,000 square meters and has an annual output of 60,000 tons of steel wire ropes. Our market share & industry rankings for elevator wire ropes are among the top 3 in China.
With over 60 years of experience in manufacturing wire ropes, we offer the best performing wire ropes solutions for different application around the world maintaining the highest quality and safety standards. We are the first domestic enterprise to develop elevator wire ropes and now became the leading supplier of special steel wire ropes in China.
360° factory panorama: https://world-port.made-in-china.com/viewVR?comId=xMbnHuwCnTlO
For more information
Specification 6*19 NFC/SFC (Standard: GB/T 8903)
For specification of other standards such as DIN 3062, EN 12385, JIS G3525, ISO 4344 and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)	Minimum breaking load (kN)
		Dual tensile (MPa)			Single tensile (MPa)
		1320/1620 1320/1770	1370/1770	1570/1770 1620/1770	1570	1620	1770	1960
6	12.9	16.8	17.8	19.5	18.7	19.2	21	23.3
6.3	14.2	-	-	21.5	-	21.2	23.2	25.7
6.5	15.2	19.7	20.9	22.9	21.9	22.6	24.7	27.3
8	23.0	29.8	31.7	34.6	33.2	34.2	37.4	41.4
9	29.1	37.7	40.1	43.8	42	43.3	47.3	52.4
9.5	32.4	42	44.7	48.8	46.8	48.2	52.7	58.4
10	35.9	46.5	49.5	54.1	51.8	53.5	58.4	64.7
11	43.4	56.3	59.9	65.5	62.8	64.7	70.7	78.3
12	51.7	67	71.3	77.9	74.6	77	84.1	93.1
12.7	57.9	75	79.8	87.3	83.6	86.2	94.2	104
13	60.7	78.6	83.7	91.5	87.6	90.3	98.7	109
14	70.4	91.2	97	106	102	105	114	127
14.3	73.4	-	-	111	-	-	119	132
15	80.8	-	111	122	117	-	131	146
16	91.9	119	127	139	133	137	150	166
17.5	110	-	-	166	-	-	179	-
18	116	151	160	175	168	173	189	-
19	130	168	179	195	187	193	211	-
20	144	186	198	216	207	214	234	-
20.6	152	-	-	230	-	-	248	-
22	174	225	240	262	251	259	283	-

Specification 8*19 NFC/SFC (Standard: GB/T 8903)
For specification of other standards such as DIN 3062, EN 12385, JIS G3525, ISO 4344 and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)	Minimum breaking load (kN)
		Dual tensile (MPa)			Single tensile (MPa)
		1320/1620 1320/1770	1370/1770	1570/1770 1620/1770	1570	1620	1770
6.3	13.5	16.4	17.4	19.1	18.3	18.8	20.6
8	21.8	26.5	28.1	30.8	29.4	30.4	33.2
9	27.5	-	35.6	38.9	37.3	-	42
9.5	30.7	37.3	39.7	43.6	41.5	42.8	46.8
10	34.0	41.3	44.0	48.1	46.0	47.5	51.9
11	41.1	50.0	53.2	58.1	55.7	57.4	62.8
12	49.0	59.5	63.3	69.2	66.2	68.4	74.7
12.7	54.8	66.6	70.9	77.5	74.2	76.6	83.6
13	57.5	69.8	74.3	81.2	77.7	80.2	87.6
14	66.6	81	86.1	94.2	90.2	93.0	102
14.3	69.5	-	-	98.3	-	-	-
15	76.5	-	98.9	108	104	-	117
16	87.0	106	113	123	118	122	133
17.5	104	-	-	147	-	-	-
18	110	134	142	156	149	154	168
19	123	149	159	173	166	171	187
20	136	165	176	192	184	190	207
20.6	144	-	-	204	-	-	-
22	165	200	213	233	223	230	251

Specification 8*19S IWRC CSC (Standard: GB/T 8903)
For specification of other standards such as DIN 3062, EN 12385, JIS G3525, ISO 4344 and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)		Minimum breaking load (kN)
			Dual tensile (MPa)				Single tensile (MPa)
			1370/1770		1570/1770		1570		1770		1960
	IWRC	CSC	IWRC	CSC	IWRC	CSC	IWRC	CSC	IWRC	CSC	IWRC	CSC
6	14.7	-	-	-	21.4	-	20.1	-	22.7	-	25.1	-
8	26	24.6	35.8	34.7	38	36.9	35.8	34.7	40.3	39.1	44.7	43.3
9	33	31.2	45.3	43.9	48.2	46.7	45.3	43.9	51	49.5	56.5	54.8
9.5	36.7	34.7	50.4	48.9	53.7	52	50.4	48.9	56.9	55.1	63	61
10	40.7	38.5	55.9	54.2	59.5	57.6	55.9	54.2	63.0	61.1	69.8	67.6
11	49.2	46.6	67.6	65.5	71.9	69.7	67.6	65.5	76.2	73.9	84.4	81.8
12	58.6	55.4	80.5	78	85.6	83	80.5	78	90.7	87.9	100	97.4
12.7	65.6	62.1	90.1	87.4	95.9	92.9	90.1	87.4	102	98.5	113	109
13	68.8	65.1	94.5	91.5	100	97.4	94.5	91.5	106	103	118	114
14	79.8	75.5	110.0	106	117	113	110	106	124	120	137	133
15	91.6	86.6	126.0	122	134	130	126	122	142	137	157	152
16	104	98.6	143.0	139	152	147	143	139	161	156	179	173
18	132	124.7	181.0	175	193	187	181	175	204	198	226	219
19	147	139	202	196	215	208	202	196	227	220	252	244
20	163	154	224	217	238	230	224	217	252	244	279	270
22	197	186.3	271	262	288	279	271	262	305	296	338	327

Specification 9*19S IWRC CSC (Standard: GB/T 8903)
For specification of other standards such as DIN 3062, EN 12385, JIS G3525, ISO 4344 and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)		Minimum breaking load (kN)
			Dual tensile (MPa)		Single tensile (MPa)
			1570/1770		1570		1770		1960
	IWRC	CSC	IWRC	CSC	IWRC	CSC	IWRC	CSC	IWRC	CSC
8	27.5	25.6	41.9	40.1	39.4	37.7	44.4	42.5	49.2	47
9	34.8	32.4	53	50.7	49.9	47.7	56.2	53.8	62.2	59.5
9.5	38.8	36.1	59.1	56.5	55.5	53.1	62.6	59.9	69.3	66.3
10	43	40	65.5	62.6	61.5	58.9	69.4	66.4	76.8	73.5
11	52	48.4	79.2	75.8	74.5	71.2	84	80.3	93	88.9
12	61.9	57.6	94.3	90.2	88.6	84.8	99.9	95.6	111	106
12.7	69.4	64.5	106	101	99.3	95	112	107	124	119
13	72.7	67.6	111	106	104	99.5	117	112	130	124
14	84.3	78.4	128	123	121	115	136	130	151	144
15	96.8	90	147	141	138	132	156	149	173	165
16	110	102	168	160	158	151	178	170	197	188
18	139	130	212	203	199	191	225	215	249	238
19	155	144	236	226	222	213	250	240	277	265
20	172	160	262	251	246	236	278	266	307	294
22	208	194	317	303	298	285	336	321	372	356

Overview of SAFETY
FAQ
1. Quality?
We focus on the manufacture of steel wire ropes for over 60 years and participated in the formulation of several important steel rope standards in China, such as GB/T 31979-2015, GB/T 29086-2012, GB/T 20118-2017, GB/T8903-2018. SAFETY's market share & industry rankings for elevator wire ropes are among the top 3 in the world. There is no need to worry about quality.
2. Price?
We provide high-quality products with moderate prices. A little higher prices bring you the better quality and service.
3. Customized?
Customizing products for special requirements is available, for example: strength/tensile, twist direction, diameter, material, surface coating, etc.
4. Delivery time?
seven days will be ok if wire ropes are in stock. If not, we need additional 30 days to produce your wire ropes.
5. Service
Our professional service team can provide installation guidance services and basic technical training on wire ropes if you need.

---
