Weasler 14 Series Pto Shaft Replacement Tractor Agricultural Driveline

Product Description

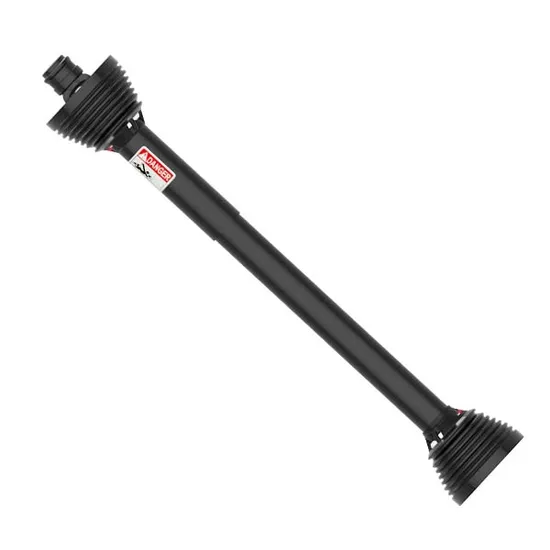

Weasler 14 Series PTO Shaft Replacement Tractor Agricultural Driveline Product Description The Weasler 14 series PTO shaft is a driveline component used to transfer power from tractor to implements in agricultural and industrial machinery. It's a standard size and design used with a variety of equipment and feature a 1-3/4 inch 20 spline (6 tooth) male end yoke and 1-3/8 inch 21 spline (6 tooth) female end yoke. The shaft has six cover sizes ranging from 38 inches to 108 inches and is made of high-strength steel.
Product Parameters Specifications of Weasler 14 Series PTO Shaft Spec. Imperial Metric

Bore 1	1.37 inches	35 mm
Bore 1	1 3/8-6 Spline
Bore 2	1.25 inches	32 mm
Bore 2	1 1/4 round 1/4 keyway
Compressed (Closed) Length	39.75 inches	1010 mm
Compressed Overall Length	47.94 inches	1218 mm
Connection 1	SPRING-LOK
Connection 2	keyway
Extended Length	66.75 inches	1695 mm
Extended Overall Length	74.94 inches	1903 mm
HP@1000RPM	48 HP	36 kilowatts
HP@540RPM	28 HP	21 kilowatts
Keyway 2	0.25 inches	6 mm
Length	47.94 inches	1218 mm
Outside Diameter	7.31 inches	186 mm
Shipping Dimensions	47.94" L × 7.31" H × 7.31" W	122cm L × 19cm H × 19cm W
Shipping Volume	2561.73 in3	41979 cm3
Shipping Weight	34.00 pounds	15 kilograms
Weight	34.00 pounds	15 kilograms
