High Speed Small Paper Drinking Straw Rolling Making Cutting Machine

Product Description

Multi Cutters High Speed Paper Drinking Straw Making Machine
Descriptions:
SWXG-50 Multi-blades paper drinking straw making machine equipped with Numerical and Multi-blades Cutting System. This machine is specially used for producing all kinds of paper drinking straws.
--Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- Adopt with MULTI CUTTERS. Winding and cutting can be finished in one time.
Technical Parameter:

Technical Parameter		Control System
Paper Layer	2-5 layers	Motor	3.0kw
Inner Diameter	5-12mm	PLC	Xinjie
Wall Thickness	0.5-2mm	Operating Panel	Xinjie
Winding Speed	0-30 meters/min	Inverter	3.7kw Delta
Winding Nose	Two noses single belt	Execute Components	CHNT
Length fixing	Encoder	Signal Components	Hugong
Speed Control	By Inverter	Pneumatic Components	Jingwei
Cutting System	Numerical Multi-blades (standard 5 pcs)	Electric Components	CHNT
Synchronism tracking cutting system	Servo motor synchronism tracking	Bearing	Haerbin
		Servo Motor	Yaskawa
Gluing Way	Single/Double sides	Screw Rod	Shangyin
Operator	1-2 person	Slider	Shangyin
Working Air Pressure	0.6Mpa	Configuration
Power Supply	380V/3Phase/50Hz	Paper Reel Stand	5 Layers Cross Type
		Gluing Unit	5 Layers Spraying Type
Measurement & Weight		Belt	2 Pieces
Measurement	3500*1500*1200mm	Mandrel Shaft	2 Pieces
Working Space	7000*5000mm	Extra blades	3 Pieces
Weight	1000kgs	Useful Tool	1 Set

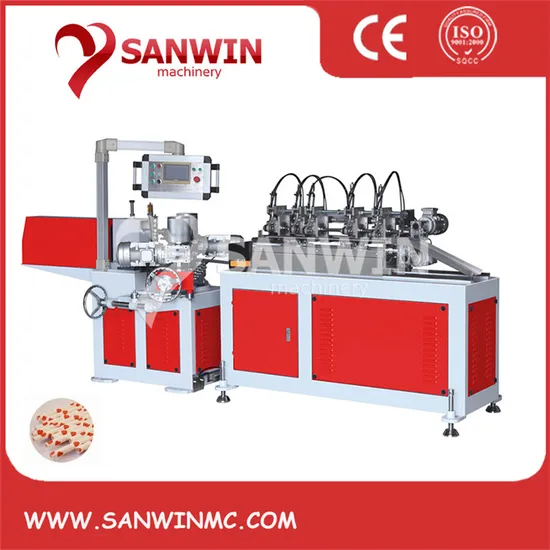

Machine Photo:
-Paper Reel Stand+Glue Unit+CNC Multi-knives Cutting System+L type collector
-Paper Drinking Straws(Finished Products)
Our Workshop
Packaging & Shipping
Our Customer:
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
Contact us:
Contact: Ms Nancy
Mobile : 0086-15868035456
Website:http://sanwinmachine.en.made-in-china.com
Add:Rui'an City ,Zhejiang Province,China
