Benchtop milling machine XL6436C XL6436CL universal milling machine taiwan

Product Description

Product Description

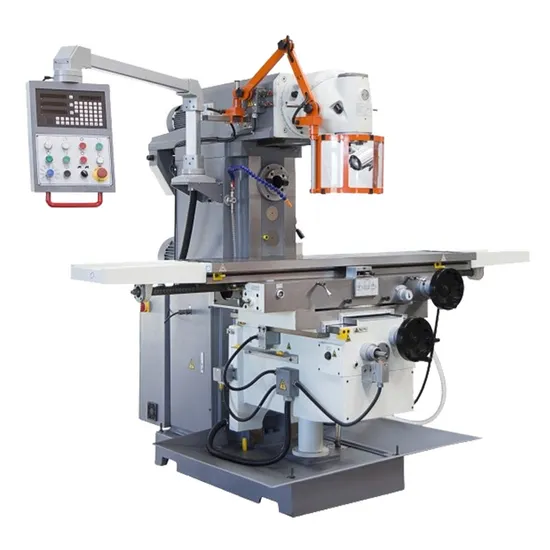

Fresadora universal XL6436C XL6436CL universal milling machine Main Features:
1. Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance. 2. Quiet, precision-made headstock gears with hardened and ground gears. 3. Universal milling head can realize fast conversion between vertical milling and horizontal milling. 4. By combining both swivel levels, almost any spatial angle can be set. 5. One powerful servo motor allows infinite adjustment of the feed on all 3 axes. 6. Control panel swings out to either side and features an integrated position indicator.
7. Coolant system and chip tray are Included.

Specificaiton	XL6436	XL6436C	XL6436CL
Table size(L×W)	1325×360mm	1325×360mm	1600×360mm
Table travel (X/Y/Z)	750×320×450mm	1100x320x450mm	1300/320/450mm
Table feed (X/Y/Z)	30-750/20-500/15-375rpm 30~750/20~500/15~375rpm
Swivel Table	±45°Optional
Spindle taper	7:24 ISO50(H/V)
Max. loading capacity	350kg
T-slotes (NxWxD)	3-18/80mm
Ram travel	600mm
Distance between spindle nose and table surface	196-646mm	190-590mm	190-590mm
Distance between horizontal nose and table surface	20-470mm	20-420mm	20-420mm
Distance between horizontal nose and arm surface	200mm
Spindle speed(12 steps)	60-1750rpm(V) 60-1800rpm(H) 12 steps 60-1750rpm (V) 12 steps 60-1800rpm (H)
Main motor power	4kw(V),5.5kw(H)
3 phase AC feeding servo motor torque	10N.m
Overall size	1800×2100×2000mm	2320×2100×2000mm	2520×2100×2000mm
N.w	2650kg	2750kg	2850kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
