Mini CNC Metal/Jade/Stone Engraving Carving Router Machine

Product Description

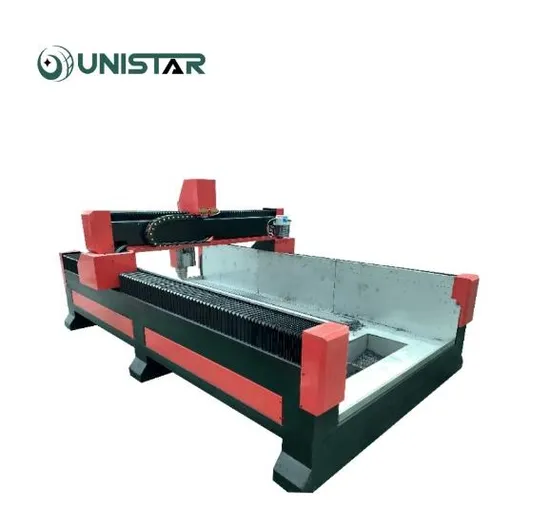

Mini CNC metal/Jade/Stone Engraving Carving Router Machine
Brief introduction to cnc engraving machine:
This mini size machine can be used for cnc engraving jade and some other stones, and also do small arts and crafts on metal and nonmetal materials, like aluminium, stainless steel, marble, granite, etc.
Features:

1.Integral cast-iron frame, equipping with double-screw auto eliminating clearance ballscrew,

floor-type linear guide transmission that can load heavy-duty board but never out of shape and ensure working precision.

2.Special dustproof and waterproof device prevent dust and rust, and make it easier to maintain.

3.The machine aggregates advanced technique in CNC industry, with more than 10pcs break-point memory that can reduce waste materials.

4.Special water-cooling system ensures the cutter a long life.

5.Applicable material: microlite, natural granite, marble, bowlder, bluestone, rostone, glass, aluminum, iron, plastic and wood etc.
Technical Parameters:

Description	Parameter
X,Y,Z Working Area	400x400x120mm
Table Surface	Aluminum alloy
X, Z Structure	Ball Screw
Y Structure	Hiwin Rail Linear Bearings or Ball Screw
Max.Rapid Travel Rate	8000mm/min
Max.Working Speed	6000mm/min
Spindle Power Motor	1.5Kw water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper system
Working Voltage	AC220V/50/60Hz/AC380V 50HZ
Command Language	G code
Operating System	DSP System (Option:NCstuido)
Interface	USB
Flash Memory	128M(U Disk)
Collet	ER16
X,Y Resolution	<0.01mm
Software Compatability	Type3 software, Ucancam software, (Option:Artcam software)
All parameters above subject to change without prior notice

Except for jade engraving, this Mini cnc router has other applications:
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table .
2.Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the metal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.
Machine details
Samples

---
