Brand Xn Small 1ton Mini Hydraulic Crawler Excavator Price

Product Description

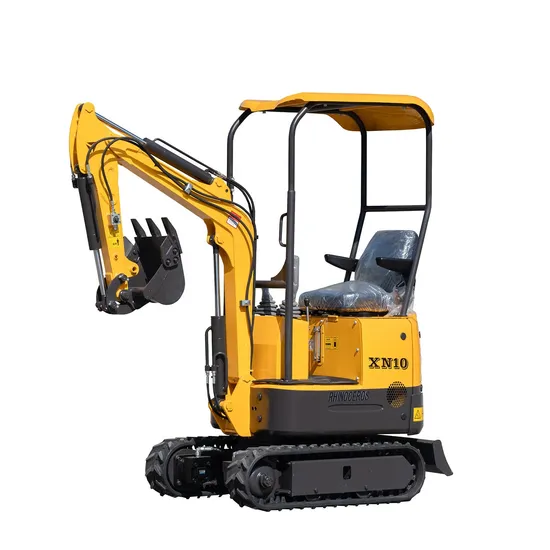

Brand XN small 1ton mini hydraulic crawler excavator price
Product Overview
Features
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return. small excavators for sale mini excavators hydraulic excavator for rent
Product Parameters

Operating Weight	1000kg
Digging bucket capacity	0.025cbm
Digging bucket width	350mm, can add narrow bucket is 200mm
Engine	KOOP(KD192F)
Rated power	8.6kw/1800r/min
Displacement	0.211 L
Bore stroke	single cylinder, fan cool
Main pump	SAISIDA
Valve	BEIFANG
MAIN DEMENSIONS
Overall dimension( LxWxH)	2770x896x1490 mm
Wheelbase	910 mm
Total length of track on land	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	130 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm

Product Detailes

Attachments
You can install more and more accessories to discover more functions of the mini excavator
Packaging & Shipping
If you need 1-3 units would be Wooden box, More than 4 units will loading by containerWithin 7 days we will ship your goods when we received the advance payment
Company Profile
Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE, ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.
Below are our products list: 1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t; 3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m5) Electrical kids excavator with our patents design.All of our products have CE/ ISO Certificate

---
