Basic Info.
Rope Core Type
Nylon Fabric
Sling Safety Factor
5:1 6:1 7:1
Specification
100% Polyester
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
56.00cm * 36.00cm * 24.00cm
Package Gross Weight
24.000kg
Product Description
Product Description

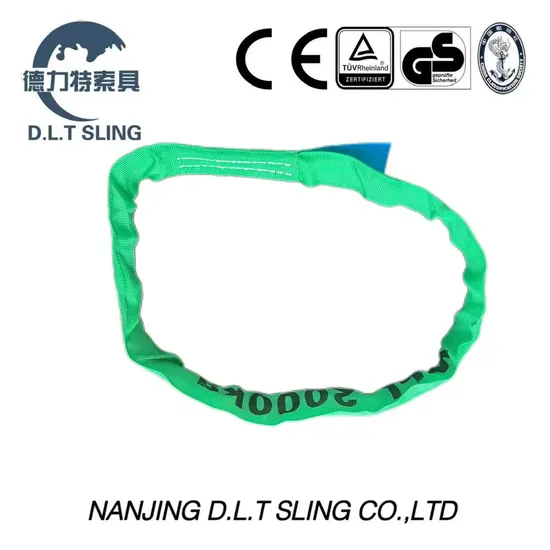

100% Polyester 2 Tons Round Sling for Lifting sling
Round sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted. Round sling is a continuous loop made from polyester yarn encased in a sleeve of polyester or Nylon fabric. The sleeve is so constructed that it protects the internal rows of yarn filament and keeps them in a parallel formation at all times. The yarn fibre core is free to spread out into a flat shape where the Round sling is in contact with its load. This provides a broad support, which cushions the load against damage and reduces slipping. The low stretch characteristics of the polyester yarn also prevent 'load bounce' when hoisting very heavy weights. Manufactured to EN 1492-2, JB/T8521.2, AS4497.1 conforming to the CE GS.
The unique advantages of Round Sling:
1,Color code, in according with international standard, to validate sling capacity.
2,Special thickness sleeves and special technical to add using life.
3,Each strips equal to 2 ton capacity, it is easy to differentiate sling capacity.
4,Clearly print WLL and length on surface of sling.
5,Change-bearing point to add using life.
6,If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.
7,100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
8,Clearly tag with serial number and a copy of certificate together with one sling.
9,Working temperature range: -40ºC-100ºC Conformity EC Council Direcive 2006/42/EC Machinery
Conformity EC Council Direcive 2006/42/EC Machinery
Round Sling's SWL WLL M CC
Stock No. Color | WLL | SWL,WLL(t),M,CC | Double Multi-set SWL(t) |
Vertical | Choker | Vertical | Choker | Vertical | Choker | Vertical |
0-7° | 7-45° | 45-60° | <45° | <45° | 45-60° | 45-60° |
| | | | | | | | |
1 | 0.8 | 2 | 1.4 | 1 | 1.4 | 1.12 | 1 | 0.8 |
RS7010 | 1t | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 2,800 | 1,120 | 1,000 | 800 |
RS7020 | 2t | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 5,600 | 2,240 | 2,000 | 1,600 |
RS7030 | 3t | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 8,400 | 3,360 | 3,000 | 2,400 |
RS7040 | 4t | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 11,200 | 4,480 | 4,000 | 3,200 |
RS7050 | 5t | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 14,000 | 5,600 | 5,000 | 4,000 |
RS7060 | 6t | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 16,800 | 6,720 | 6,000 | 4,800 |
RS7080 | 8t | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 22,400 | 8,960 | 8,000 | 6,400 |
RS7100 | 10t | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 28,000 | 11,200 | 10,000 | 8,000 |
RS7120 | 12t | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 33,600 | 13,440 | 12,000 | 9,600 |
RS7150 | 15t | 15,000 | 12,000 | 30,000 | 21,000 | 15,000 | 21,000 | 16,800 | 15,000 | 12,000 |
RS7200 | 20t | 20,000 | 16,000 | 40,000 | 28,000 | 20,000 | 28,000 | 22,400 | 20,000 | 16,000 |
RS7300 | 30t | 30,000 | 24,000 | 60,000 | 42,000 | 30,000 | 42,000 | 33,600 | 30,000 | 24,000 |
Company introduction
NANJING D.L.T SLING CO., LTD is a leading manufacturer and exporter of lifting slings, webbing slings, endless slings, and cargo control products in China. Our product range includes flat webbing slings, round slings, ratchet straps, ratchet tie downs, winch straps, recovery straps, and slacklines. Product Standards
· Webbing Slings: ISO4878, EN1492-1, ASME B30.9, AS1353 · Round Slings: ISO4878, EN1492-2, ASME B30.9, AS4497 · Ratchet Straps/Tie Downs: EN12195, WSTDA, AS/NZS 4380.2001 Our Advantages
· Our products are known for their superior quality and durability.
· Our company is at the forefront of technological innovation in our industry.
· Our team has decades of combined experience.
· We pride ourselves on excellent customer service and support.
· Our products are cost-effective and provide great value for money.
· Our efficient logistics ensure timely delivery of orders.
· We offer customized solutions to meet specific client needs.
· Our products are eco-friendly and produced with minimal environmental impact.
· Our products are trusted by customers worldwide.
· We have a professional and dedicated team.
Certifications
>>
