CHEUNG KONG MACHINERY ESTABLISH 2004 AND HAVE THREE FACTORIES IN CHINA WITH TOAL COVER 150000 SQUARE METERS
A4 AND A3 SIZE CUTTING A4 SIZE PACKING A4 SIZE CARTON PACKING

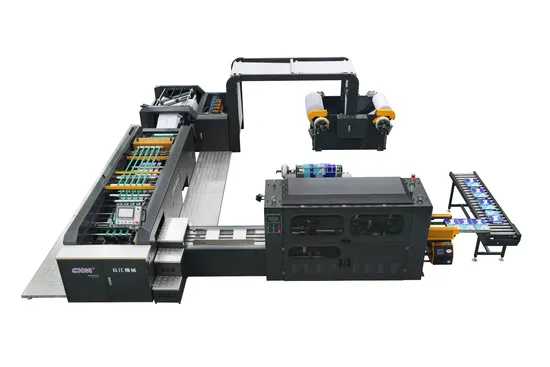

A. CHM-A4-4(pocket) Cut Size Sheeting Machine
A.1. Main Technical Parameter
| Paper Width | : | Gross width 850mm, net width 840mm |
| Cutting numbers | : | 4 cutting-A4 210mm (width) |
| Paper roll's diameter | : | Max.Ф1400mm. Min.Ф600mm |
| Paper core's diameter | : | 3"(76.2mm)or 6"(152.4mm) or according to the clients' demand |
| Packing Paper grade | : | High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
| Paper weight | : | 60-100g/m2 |
| Sheet length | : | 297mm ( specially design for A4 paper, the cutting length is 297mm) |
| Ream amount | : | 500 sheets Max. Height: 45-55mm |
| Production speed | : | Max 0-250m/min(depends on different paper quality) |
| Max. Numbers of cutting | : | Max 841min |
| Output of the ream | : | Max 26reams/min |
| Load of cutting | : | 400g/m2 (4×100g/m2) |
| Cutting accuracy | : | ±0.2mm |
| Cutting condition | : | No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
| Main power supply | : | 3*380V /50HZ |
| Voltage | : | 220V AC /24V DC |
| Power | : | 32KW |
| Air consumption | : | 300NL/min |
| Air pressure | : | 6 bar |
| Edge cutting | : | 2×10mm |
| Safety standard | : | Design according the safety standard of China |
