Factory Supply Corn Maize Wheat Crushing Feeds Crusher Hammer Mill

Product Details

Product Description

Product Description

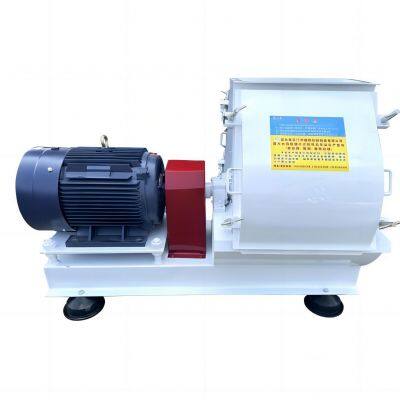

Corn Wheat Maize Grain Hammer Mill
1. Our SFSP series Hammer Mill used for grinding raw materials by feed or biomass pelleting production line, also used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be grinding.
2. It is derived from tear circle type hammer mill and efficiency can be improved by 45%-90% comparing to universal hammer mill.
3. It can produce qualified aqua feed under full load withΦ 0.6 Φ 0.8, Φ 1 ,Φ 1.2,Φ 1.5 screen and reduce jam significantly. Both coarse and fine grinding can be realized without changing screens.
4. The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.
Advantages:
1) Frequency Conversion Impeller Feeder: To make the corn grinder work full efficiently, the frequency is changing in real time based on the raw material amount in the crushing chamber, and the feeding speed is self-adapting.
2) Crushing Chamber: there area number of hammer and shaft inside. the high speed rotating hammer make the raw material corn grain into powder. and there are screen at the bottom of the chamber.
3) Main Motor: we equip the super quality and brand Siemens Motor for our hammer mill machine.
4) Base structure: support the other unit.
5) Bearing: we adopt the famous brand bearing in our machine.
We adopt the super quality Siemens brand motor in our machine.
Product Parameters

Model		SFSP 56×30	SFSP 56×40	SFSP 56×50	SFSP 56×60	SFSP 968A-5	SFSP 968A-6	SFSP 968A-7	SFSP 968A-8	SFSP 968A-8SS	SFSP 968A-9	SFSP 968A-10	SFSP 968B-6	SFSP 968B- 7	SFSP 968B-8	SFSP 968B-8SS	SFSP 968B-9	SFSP 968B-10
Rotor diameter(mm)		560	560	560	560	600	600	600	600	600	600	600	680	680	680	680	680	680
Spindle speed(rpm)		2950	2950	2950	2950	2950	2950	2950	2950	2950	2950	2950	2950	2950	2950	2950	2950	2950
Hammer pieces		24	32	40	48	60	72	84	96	88+8*	100+8*	112+8*	96	112	128	120+8*	134+10*	152+8*
Hammer screen gap (mm)		12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12
Power(kw)		22	30/37	37	45	4555	5575	75	7590	7590	90110	110132160	5575	75	7590	7590	90110	110132160
Bearing model		22212	22212	22212	22212	NJ314	NJ314	NJ314	NJ314	NJ314	NJ316	NJ316	NJ314	NJ314	NJ314	NJ314	NJ316	NJ316
Suction air volume(m3//h)		1500	2000	2500	3000	2600	3100	3600	4100	4100	4600	5100	3300	3800	4400	4400	4900	5500
Capacity(t/h)	Corn	2	3	4	5	5	6-7	7-8	9	10-11	10-11	12-13	14-16	10-11	10-11	12-13	12-13	14-15
	Rice husk	0.5	0.6	0.8	1	1.2-1.4	1.4-1.6	1.8	2-2.2	2-2.2	2.4-2.6	2.8-3.2	2-2.2	2-2.2	2.4-2.6	2.4-2.6	2.8-3	3.2-3.6

Detailed Photos
