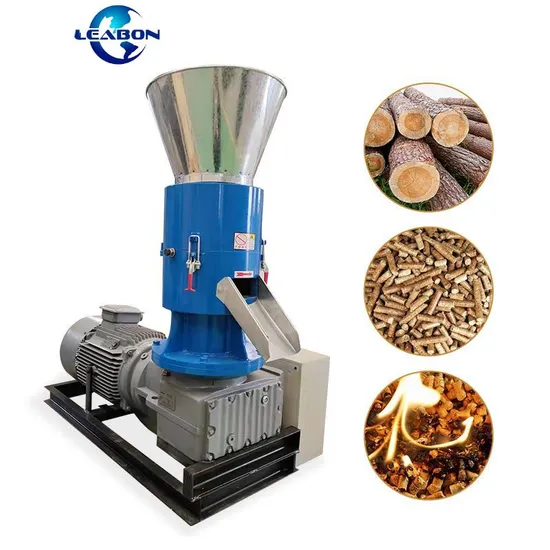

High Efficiency Biomass Sawdust Wood Pellet Making Machine for Sale

Product Description

High Efficiency Biomass Sawdust Wood Pellet Making Machine For Sale
Product Description
1.This system pellet machine is suitable for making biomass particles such as sawdust,rich husk,paddy straw,sunflower stalk,hulls,forestry wastes pellet,etc.
2.Use Cold-pressing molding technology,the raw material is under dried condition,which is compressed,and formed into small eraser-sized bits,the final pellets is clean, pleasant and smooth; its density is more than 1.0g/cm3.
3.It has been installed with the KAF gear reducer and electrical control box. Key components are made of high quality alloy steel adds wear-resisting material,Using heat treatment; Service life can beextended 5-7 times.

Product Parameters

Model	Capacity(kg/h)	Motor(kw)	Pellet size (mm)	Dimension(m)	Weight(kg)
KAF-200	100-150	7.5 kw	6,8	1* 0.45* 0.8	320
KAF-250	150-200	15 kw	6,8	1.1* 0.55* 0.95	400
KAF-300	200-300	22 kw	6,8,10	1.2* 0.6* 1.1	550
KAF-350	350-450	30 kw	6,8,10	1.45* 0.8* 1.3	850
KAF-450	400-600	45 kw	6,8,10,12	1.5* 0.85* 1.55	1300
KAF-550	800-1000	55 kw	6,8,10,12	1.55* 0.9* 1.65	1600
KAF-800	1200-1500	90kw	6,8,10,12	2* 1.1* 1.9	3500
KAF-1000	1500-2000	110kw	6,8,10,12	2.2* 1.25* 2.05	5000

Spare Parts
Other Type Wood Pellet Machine
1.PTO/Tractor Driven Flat Die Wood Pellet Machine

1.It is mainly applied to granulation such as sawdust, rice husk, cotton stalk, cotton seed skins, weeds and crop stalks and other plant wastes can also be applied to fertilizer,organic manure, fertilizer and fuel pellet. 2.The moisture content of raw materials is about 10%-18% before pelletizing.

Specification

Model	Output (kg/h)	Pellet (mm)	Mould (mm)	Size (mm)	Weight (kg)
PM200T	100-150	6-8	200	450*400*1100	250
PM250T	200-250	6-8	250	550*450*1100	300
PM300T	250-300	6-10	300	600*550*1250	350
PM350T	350-450	6-10	350	650*600*1300	400
PM-450T	500-700	6-10	450	850*800*1450	800

2.Diesel Engine Driven Flat Die Wood Pellet Machine

1.Diesel Drive Pellet Mill is suitable for large farms and organic herbal medicine and chemical industry, etc. 2.The raw material could be wood sawdust,rice husk,bamboo power, straw,clover, cotton seed shell etc. and can be mixed with all kinds of power materials.

Specification

Model	Output(kg)	Power(hp)	Flat die diameter(mm)	Pellet(mm)	Packing size(mm)	Weight(kg)
200D	100-120	15	200	6,8	1250*650*1200	450
250D	150-200	22	250	6,8	1300*700*1300	650
300D	250-350	32	300	6,8,10	1650*750*1400	800
350D	300-500	42	450	6,8,10	1350*1100*1100	950

Small capacity of wood pellet production line
Raw Material and Final Product
Packaging & Shipping
Company Profile
FAQ

(1). What capacity would your need? -----The Capacity Range of Wood Pellet Machine:80-120KG/H; 150-200KG/H;250-300KG/H; 300-400KG/H;450-600KG/H;700-800KG/H,etc.

(2).What is your raw material? -----suitable for different raw material such as wood/logs, sawdust, straw,wood chips,nuts shell,waste wood etc.

(3).What is your raw material size? ----Best size for pressing high quality pellets is 3mm-5mm.

(4).What is the moisture of your raw material? ----Better to be 10-15%.( If large than this, then we will recommend your Dryer Machine)

(5).Final Pellets Size? ----We have Diameter for Pellets:6mm, 8mm, 10mm, 12mm, (Different Diameters for your Different Requirement.)
