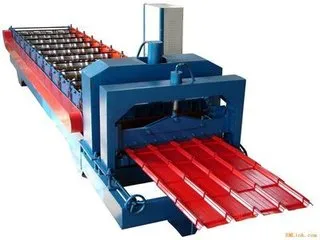

Glazed Wall Panel Forming Machine/ Roll Forming Machine

Product Description

Product Description
Detailed Photos
Profile Drawing
Main Parameters Specification of rolling material: 1250×(0.4-0.8)×L, yield strength ≤250MPa Working speed: 3.0-4.0m/min (take 350mm pitch of waves as example) Roller steps: 16 steps Frame of machine: Welded with 350H beam steel Thickness of wallboard: 16mm Roller material: Adopts superior 45# forged steel, with hard chromium plated Shaft material: Adopts superior 45# forged steel, quenching and tempering Main shaft diameter: ¢70mm Main motor power: 5.5KW Hydraulic station power: 11KW Hydraulic station pressure: 10-12Mpa Electric control system: Adopts PLC (Panasonic) frequency control Machine size: 7000×1700×1400(mm) Structure Features and Compositions Structure features
a. Simple and reasonable structure, beautiful appearance. Our whole machine adopts profile steel structure and all processed after welding, so it can work stably and has high efficiency.
b. Our machine adopts full automatic accurate fixed length punching and cutting, ends of finished sheets are beautiful and neat, without deformation. Equipment structure Glazed tile roll forming machine is equipped with Feeding device (5T capacity), transmission, main machine and roller, punching after roll forming, cutting device, hydraulic system, electric control system, run out table, etc. Work Flow
Loading → De-coiling & Feeding → Adjusting & Guiding → Roll forming → Punching after roll forming → Cutting → Run out table
Technological Process Figure
We are a China roll forming machine manufacturer that is engaged in the production of roof sheet forming machines, 840 corrugated sheet roll forming machines, Glazed Tile Roll Forming Machines, flat sheet bending machines, among others. With more than 20 years of experience in this industry, we are able to offer you reliable and low-priced roll forming machines. Our products are exported to Mexico, India, Iraq, Romania, Ukraine, Angola, Guinea and other countries. Please contact us for your roll forming needs.

Company Profile
Yingkou Bohai Machinery Equipment Manufature Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
