100TPD automatic sunflower seeds rapeseeds soybean peanut corn germ large cold pre-press making expeller machine processing production line big screw oil press

Product Description

100TPD automatic rapeseeds soybean peanut oil production line processing big oil press machine
Product Description
Instruction

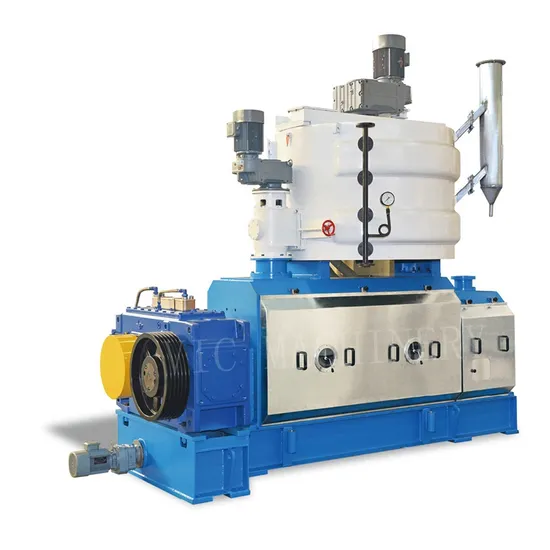

The DZY276B pretreatment big oil press machine is an upgraded product of the original 32-type oil press.
Compared with the original model, it has a hollow shaft water-cooling device to avoid cake sticking. The feeding mode is changed to reverse feeding. The gearbox is an up-and-down opening and closing box, and the gear it adopts the gear grinding process and is equipped with a cold oil circulation system, which has a longer service life and easier maintenance.
The pressed cake has good shaping effect and good color, which is conducive for leaching.
This big screw oil press machine has a wide range of adaptability, and the requirements for moisture and temperature are not too strict. It is also a high and low temperature dual-purpose machine. Even if the material temperature is pressed at a low temperature of 70-80 degrees, it will not affect the residual oil index of the dry cake and can ensure low denaturation of protein in cake.
The pretreatment oil press machine occupies a small area, reduces maintenance costs and is easy to manage.
Advantage:
1. The gearbox of the main gearbox (Jie brand reducer) is equipped with a cold oil circulation spray device, so that the gearbox bearings and gears are fully lubricated and their service life is greatly extended;
2. The main gearbox is independently researched, designed and produced according to the operating characteristics of the oil press. It has the characteristics of large gear module, high strength, torsion resistance, thrust resistance and low operating noise. The gears adopt hard tooth surface grinding technology;
3. The snails and bars are made of cemented carbide and have a service life of not less than 6 months;
4. The outer cover plate of the oil press is made of 304 stainless steel;
5. The oil press pulley is a Martin wheel;
6. The surface of the oil press has been shot blasted to remove rust, polished and then painted twice with Everest brand glossy anti-rust paint. The topcoat is Goldfish brand phthalocyanine green topcoat;
7. The main shaft and the reducer are connected by a square-head coupling. This connection method does not break the shaft and effectively prevents the main shaft from fatigue fracture. The main shaft is a hollow cooling shaft and is equipped with an electric cake adjusting device;
Main data about the big oil press machine:

Model	DZY-276B big oil press machine
Processing capacity	80-120Ton/day(rape seeds)
Power	Main motor 75kw
Cooker	2 layers, 1600mm dia, carbon steel
Oil residue in cake	≤14%
Installation size	3705x1040x2800mm
Weight	10Ton

More pictures and details
Customizable single-layer or multi-layer cooking pans can be used for raw material pretreatment
Forced helical variable frequency feed system ensures continuity and adjustability of feeding
Reducer with oil bath cooling system can work stably for a long time
Workshop corner
Other big screw oil press machine DZY338
Other screw oil press machine 6YL-160A
Other hydraulic oil press machine
