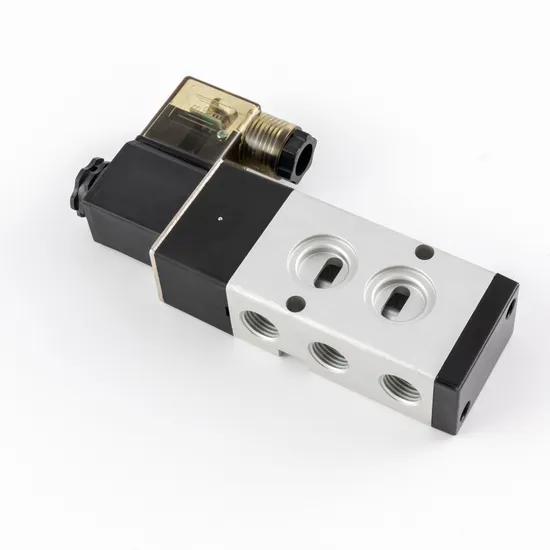

Pneumatic Electrical Solenoid Valve 4V210-08 06 4V310-10-08 4V410-15-10

Product Description

Description 4M series NAMUR solenoid valve, port size ranges from 1/8" to 1/2". Among which 4M310 -08 are international standard and 4M310-08G series are 5/2 way to 3/2 way inter-changable. The spool of 4M series Namur valve, is cutted and one-timemachined from superior aluminum alloy rod , by high precision CNC machine; Valve body use strong aluminum alloy ,ensuring clean and rigid thread. Dynamic and static armature made by Japan-imported hybrid machining center at one time with Germanyimported stainless steel material, ensuring high accuracy and rapid magnetizing and . demagnetizing; Integral coating of coil by thermosetting BMC ,ensuring IP65 protection, low temperature rise, longer service life. Specialized Machining + Assembly + Testing automation production streamlines, ensuring high quality stability and consistency of 4M series NAMUR solenoid valve,supported by special low power technology, low power, low temperature rise, PLC directly connection, long life.

Main Product features *Dynamic/static armature made of Germany stainless steel material, fast response
*Mould of pilot seat is made by top-level supplier, high precision for plastic parts.
*Spool one- time-machined from superior aluminum alloy rod , by high precision Japan CNC
*Valve body use 6061-T6 aluminum alloy ,ensuring clean and rigid thread.
*Special mini filter is designed on pilot exhaust port, cleaner inner air
*Integral coated coil by thermosetting BMC, IP65 protection, low temperature rise, longer life
*Machining + Assembly + Testing automation production streamlines, high stability and consistency
*Function various 5/2,3/2,5/3, solenoid control,air control,size ranges 1/8"-1/2"

Supply Chain *Imported seal
*Imported grease
*Germany stainless steel
*High precision mould
*Strength aluminium

Inner Structure

NO.	Part name	Material	NO.	Part name	Material
1	Connector	Engineering plastic	10	O-ring	HNBR
2	Nut	POM+Carbon steel	11	Rear cover	Engineering plastic
3	Coil	Cu	12	Filter	Synthetic material
4	Pilot units		13	Piston	POM
5	Plate	Carbon steel	14	Spring	Stainless steel
6	Piston	POM	15	Manual override	Engineering plastic
7	Pilot seat	Engineering plastic	16	Back seat	Aluminum alloy
8	Valve body	Aluminum alloy	17	Spring seat	Aluminum alloy
9	Spool	Aluminum alloy	18	C-type buckle	65Mn

technical Specification

Model	4M110-M5	4M110-06	4M210-06	4M210-08	4M310-08	4M310-10	4M410-15
	4M120-M5	4M120-06	4M220-06	4M220-08	4M320-08	4M320-10	4M420-16
Working Media	Air
Action Mode	Intemal Pilot Type
Position	5/2 Port
Effective Sectional Area	5.5MM²(Cv=0.31)	12.0mm²(Cv=0.67)	14.0mm²(Cv=0.78)	16.0mm²(Cv=0.89)	25.0mm²(Cv=1.40)	30.0mm²(Cv=1.68)	50.0mm²(Cv=2.79)
Port Size	Input=Output=M5×0.8	Input=Output=G1/8		Input=G1/4, Exhaust port=G1/8	Input=Output=G1/4	Input=G3/8, Exhaust port=G1/4	Input=Output=G1/2
Lubrication	No Need
Working Pressure	0.15-0.8Mpa
Proof Pressure	1.0Mpa
Working Temperature	0~60ºC
Voltage Range
Power Consumption	AC:2.8VA DC:2.8W		AC:5.5VA DC:4.8W
Insulation Grade	F Level
Protection Class	IP65(DIN40050)
Connecting Type	Plug Type
Max. Operating Frequency	5 Cycle/Sec
Min.Excitation Time
Material	NBR Aluminum Alloy

1. Question:What is your main products? Answer:Our main products are Pneumatic Actuators, Electric Actuators, Actuated Valves And Valve actuators Accessories.. 2. Question:Are you a trader or manufacturer ? Answer: We are the pneumatic actuators and electric actuators manufacturer , we have ability to do the customization products with experienced team, And we have own factory and production line. 3. Question:How do your make the quality guarantee for actuators? Answer:We have our own quality control system for incoming and outgoing of the materials, every product will be under controlled and tested before delivery to our customer , and we also provide 18 months guarantee ,beside we provide technical supporting . 4. Question:When can I receive the Price of valve actuators ? Answer:We will give the Quotation Within 24 hours after we get your inquiry .Or Your can call or message us if it's quite urgently. 5. Question:How to order our pneumatic actuators and electric actuators ? Answer:Please send us your inquiry by Email, whatsapp, wechat etc. we need to know the following informations before giving the formal Quotation. 1) Product information in details, Quantity, Other requirements 2) Delivery time required 6. Question:How can I get a sample to check your quality? Answer:Contact with our sales expert to arrange the sample delivery. Please send us the details of the sample before placing the order. 7. Question:Shall we pay the sample cost and transportation cost ? Answer:We will provide the sample by free of charge. Your will bear the freight cost. 8. Question:How long to prepare the sample ? Answer:Most of our products are under regular production and some of them we keep in stocks. 9. Question:How to delivery the sample to our place? Answer:Your can provide your forwarders contacts if any, or we will arrange it for you. 10. Question:What about the delivery date if we place the formal order ? Answer:Usually it takes 15~20days on the production .We know that on-time delivery is very crucial to our customers to meet dead-lines. We monitor and expedite our supply chain to ensure that we delivery our products to our customers on-time all the time.

---
