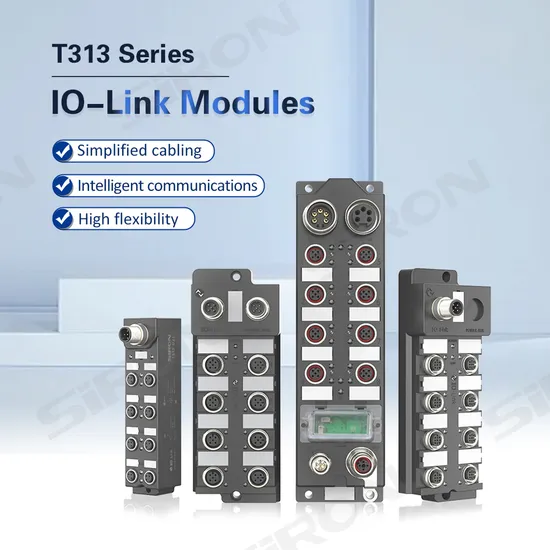

Siron T313-1 Ethercat Communication Master Station IO-Link Module

Product Description

Features * EtherCATslave station; Built-in Ethernet switch; * Support 100Base-TX; Dual M12 D code Ethernet bus interface; * 8-port IO-Link Master; * IO-Link master station port type ClassA; IO-Link master station port type M12Acode; * The shell is made of high-strength plastic; Shock resistance; The electronic circuit is sealed with resin, IP67 protectionclass.
About selection
Specifications

Model		T313-1
Operating/load voltage		24VDC±10%
Module operating current		<200mA
Supply current		Recommend>8A
Number of ports		8(C1…C8)
Port mode		M12, code A, five cores
Port provides current		The maximum 2A is the current provided by the first hole to the Device; Where: C1... The sum of C4 does not exceed 4A; C5… The sum of C8 does not exceed 4A
Operating temperature		-20~+55ºC
IO-Link parameter	SIO model	Not supported Hole 4 cannot be used as common I/OS
	IO-Link	The fourth hole is the IO-Link
	IO-Link Port type	Hole 2 of Category A is vacant
	IO-Link protocol specifications	V1.1
	Frame type	All frame types in the specification are supported
	Supported devices	The maximum support 32Bytes Input/32Bytes Output
	Transmission rate	4.8kbps(COM1)/38.4kbps (COM2)/230.4kbps(COM3)
EtherCAT communication interface	Number of interfaces	2
	Transmission mode	100Base-TX
	Automatic negotiation mechanism	Support
	Automatic cross flip	Support
	Maximum transmission rate	100Mbit/s
	Automatic scanning	The EtherCAT scanning function automatically scans IO-Link devices connected to the port
	Interface type	M12 D code hole
