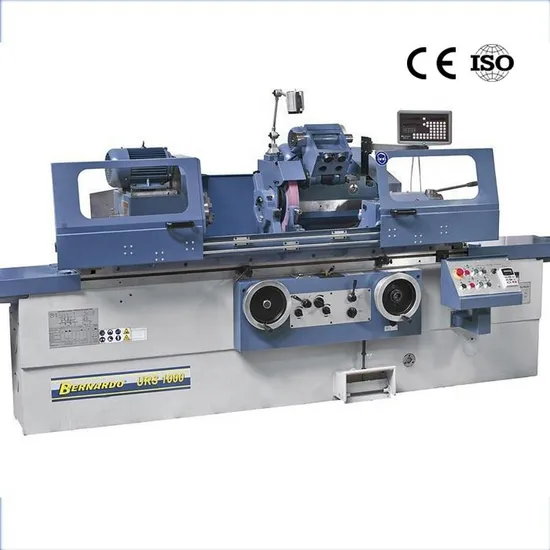

| Cylindrical Grinding Machine M1432B Feature |
| M1432B Universal Cylindrical Grinder is an improved and renovated design of its predecessor, M131W and M1432, with full retainment of their noteworthy merits. It is operated by hand and can be controlled and actuated either by power or by hydraulic system. In comparison the machine is superior to M1432A in the following field: Greater rigidity and resistance to temperature change deformation of the machine body; Large diameter for grinding wheel spindle; More power of the grinding wheel and use of small orifice lubricant restrictor for off setting table load for better table lubrication. All these improvements result in higher efficiency and better finish in grinding performance. Machine table longitudinal travel, wheel head raped approach and withdrawal and automatic periodic cross infeed are driven hydro-electrically by pushing button operation. The machine also has the following functions: Hand-operated worktable and wheel head manually traverse infeed plus hydraulic tailstock quill retraction by foot. The headstock can be swiveled in counter-clockwise direction in 90 degree range. By swiveling the headstock, or wheelhead or table, components with different external or internal taper can be ground. By turning down the internal grinding attachment, internal surface of components can be provided for grinding selection. 6 sets of internal cylindrical grinding pin are available. Workpiece, external and internal grinding wheels, hydraulic and coolant pumps are all driven separately by individual motors. All the power moving portions of machine are interlocked by electro hydraulic mechanism to ensure safety in operation. External and internal grinding wheels are guarded in sound and strong covers. |
| Specifications | M1432BX1000 | M1432BX1500 | M1432BX2000 | M1432BX3000 |
| Grinding length external(O.D./I.D.) | 1000/125mm | 1500/125mm | 2000/125mm | 3000/125mm |
| Grinding diameters(O.D./I.D.) | Φ8-320/Φ30-100mm | |||
| Center height | 180mm | 180mm | 180mm | 180mm |
| Max travel of worktable | 150kg | 150kg | 150kg | 150kg |
| Worktable speed | 0.1-4m/min | 0.1-4m/min | 0.1-4m/min | 0.1-4m/min |
| Max peripheral speed of grinding wheel | 35m/s | 35m/s | 35m/s | 35m/s |
| Max travel of table | 1100mm | 1600mm | 2100mm | 3100mm |
| Swivel range of worktable | -3-+7° | -3-+6° | -2-+5° | -2-+3° |
| External wheel size | Φ400x50xΦ203mm | Φ500x50xΦ203mm | ||
| Spindle speed of worktable | 50HZ:25-220r/min stepless 60HZ:30-264r/min stepless | |||
| Workhead and tailstock center | NO4 | NO4 | NO4 | NO4 |
| Wheelhead displacement per div of handwheel coarse/fine | 0.01/0.0025mm | |||
| Total motor power | 9kw | 9kw | 9kw | 9kw |
| Overall dimensions(LxWxH) | 3605/4605/5606/7605x1810x1515mm | |||
| Machine weight | 3700kg | 4300kg | 6600kg | 8600kg |
| Standard Accessories | Optional Accessories | ||
| ·Complete set of electric equipment | ·Wheel balancing stand | ||
| ·Complete set of coolant equipment | ·Radius dresser | ||
| ·Wheel peripheral dresser | ·End-face dresser | ||
| ·Wheel flanges | ·Center rest close type | ||
| ·Wheel balancing mandrel | |||
| ·Open type steady rest | |||
| ·Leveling wedge | |||
| ·3 Jaw chuck | |||
| ·Int. grinding attachment | |||
| Working Accuracy | |||
| O.D.Roundness | 2.5/2.5μm(O.D/I.D) | ||
| Uniform of dia. in longitudinal section | 8/10μm | ||
| Surface roughness | Ra 0.32/0.63μm(O.D/I.D) |
