US$10,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
1ton 3ton 5ton 8ton 10ton
Certification
ISO9001, QS
Storage Objects
Solid, Liquid, Gas
Material
SUS304 SUS316 Cabonate Steel
Motor
One Shaft Two Shaft Gear Box
Suit Material
Grease Tank, Alcohol Tank,Attive Tank
Heating
Oil Heating with Coil Pipe, Water Cooling
Payment
30% Deposit, Balance 70% Before Delivery
Specification
1ton-20ton 50ton
Origin
Zhangjiagang, China
Production Capacity
200set/Month
Product Description
Product description:
Summary:

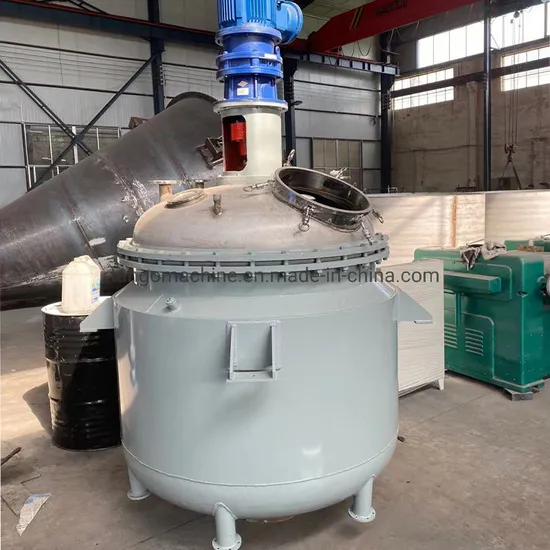

The reactor equipment is mainly used for the production chains such as hydrolysis , neutralization, crystallization , distillation , evaporation and storage in the industries of medicine, chemical industry, food and light industry ects . The reaction kettles are made of SUS304,SUS316L stainless steel material . The mixers are divided into anchor type , frame type , oar type and turbo type ects . The rotation mechanism can adopt cycloid pin gear reducer and stepless speed reducer . The sealing
mechanism can adopt mechanical sealing . The heating and cooling can adopt jacket , semi-tube and coil structure ects . The heating methods are steam , electric heating and heat transfer oil to satisfy the technology requirements under different work environment such as anti-acid , anti high temperature , anti-abrasion and anti-corrosion . The design and manufacturing can be carried out according to the technology requirements of customers .
Specifications
1. Material :304(L) 316(L)
2. Finish:Mirror or Matt Polish; Ra<0.4um
3. Fully conforms to GMP requirements
4. According to technological requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.
5. Various forms of blending vanes are suitable for production of different types of products.
6. Easy to discharge, bottom direct discharge or by transfer pump.
Main Features:
1) Material: Generally there are stainless steel, carbon steel, manganese steel, zirconium, nickel base alloy and other composite
materials.
2) Gland equipment: packing seal and mechanical seal
3) agitation types: paddle type, turbine type, propelled or gated type and the combination of different agitation forms.
4) Structure: outer jacket, outer half pipe, inner coil pipe, and inner plate
5) heating way: electric heating, steam heating and oil heating
6) Product specification: 0.1 - 20M3
Parameter list:
Model
| 50L
| 100L
| 300L
| 500L
| 1000L
| 2000L
| 3000L
| 5000L
|
Mixing Motor Power
| 0.75KW
| 1.1KW
| 2.2KW
| 2.2KW
| 4KW
| 5.5KW
| 7.5KW
| 15KW
|
Heating Motor Power
| 8KW
| 12KW
| 24KW
| 36KW
| 48KW
| 60KW
| 75KW
| 90KW
|
Inner Plate Thickness
| 5mm
| 5mm
| 5mm
| 5mm
| 6mm
| 6mm
| 8mm
| 8mm
|
Jacket Plate Thickness
| 5mm
| 5mm
| 5mm
| 5mm
| 6mm
| 6mm
| 8mm
| 8mm
|
Material
| SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.
|
Heating Type
| electric heating, steam heating, oil circulation heating etc.
|
Agitator
| anchor, paddle, frame etc.
|
Sealing Method
| packing seal or mechanical seal (vacuum)
|
Model
| We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
|
Remarks
| We support OEM
|
Usage range:
Pre-install Service
1. 24 hours online to ensure quick response to customers' inquiry or online message;
2. Guide customers to choose the most suitable machine model;
3. As client requirement to make Offer detailed specification and competitive prices;
Contract Implement 1. Machine production will be arranged strictly according to the contract;
2. Machine photos will be sent to you for inspection during production;
3. Send customers clearance documents by DHL;
4. Update latest news after delivery and prepare customs clearance;
After-sale Service
1. 12 months warranty except for wear parts;
2. Spare parts (except for wear parts) will be sent for free due to quality problems;
3. In time response to customers about technical problems;
4. New products update for customers' reference
Supply range:
1. Adhesive Glue Production Line 2. Unsaturated Resin Production Line
3. Acrylic Resin Production Line
4.Urea-formaldehyde Resin Production Line
5. Polyurethane Resin Production Line
6. Epoxy Resin Production Line
7. Silicone SealantProduction Line
8. White Latex Glue Production Line
9. Hot Melt Glue Production Line
10. Acrylic Sealant Production Line
11. PaintProduction Line
12. Super Glue Production Line
13. Silicone Rubber Production Line
