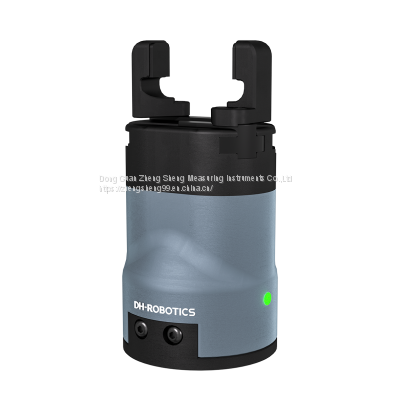

Servo-Electric Grippers PGC-50-35

Product Details

Product Description

Product Description
Product features
1.High protection level
2.Plug and play
3.Big load
Application scenarios
With cooperative robots, a series of complex processes including clamping, handling and assembly are completed in scenarios such as medical automation, 3C electronics, new energy, and robot new retail.
Technical parameters
Hold power(one side) ：15~50N
Total trip ：35mm
Maximum recommended load ：1kg
Open/close time : 0.7s/0.7s
Position repetition accuracy : ±0.03mm
Running noise：＜50 dB
The weight of the : 0.5kg
The transmission way ：Precision planetary reducer+The gear and rack
size : 124mm×63mm×63mm
Runtime environment：
Working voltage ：24V DC±10%
Ratted current ：0.25A
Peak current ：0.5A
Protection grade ：IP54
Recommended Work Environment ：0~40°C，85%RH The following
In line with international standards ：CE,FCC,RoHS

---
