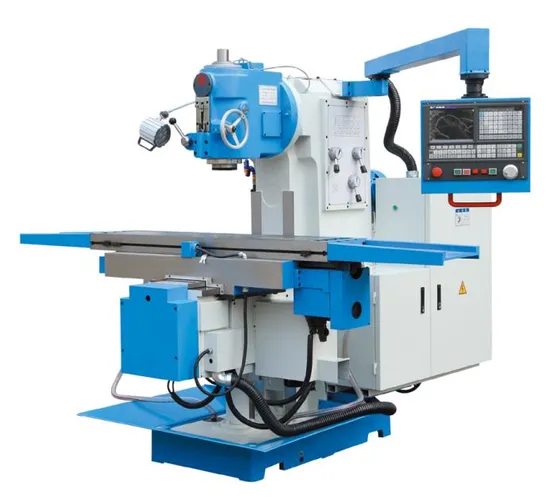

CNC Vertical Knee-Type Milling Machine Xlk5036c/Xlk5036cl/Xlk5030

Product Description

CNC Vertical Knee-type Milling XLK5036C/XLK5036CL/XLK5030

Specification:

Model No.	XLK5036C	XLK5036CL	XLK5030
Item No.
Specifications
Table size	1325x360 mm	1600x360 mm	1370x300 mm
Table travel(X/Y/Z)	1100/320/450 mm	1300/320/450 mm	820/300/400 mm
Table rapid feed speed	4000/4000/3000 mm/min	4000/4000/3000 mm/min	4000/4000/3000 mm/min
T slot ( No./wicth/pitch)	3/18/70 mm	3/18/70 mm	3/14/80 mm
Spindle
Spindle hole taper	ISO 50(7:24)	ISO 50(7:24)	ISO 40(7:24)
Distance between spindle and table surface	30-480 mm	30-480 mm	35-435 mm
Distance from spindle and table surface	378 mm	378 mm	285 mm
Spindle speed range	12 step 50-1475 r/min	12 step 50-1475 r/min	12 step 35-1500 r/min
Swivel angle of veritcal milling head	±30°	±30°	±30°
Stroke of spindle quill	70 mm	70 mm	70 mm
Main motor power	5.5 kw	5.5 kw	3 kw
Torque of X/Y/Z axis AC servo motor	10/10/18 N.m	10/10/18 N.m	10/10/15 N.m
Dimension of package
Overall size(LxWxH)	2245x2100x2150 mm	2520x2100x2150 mm	1850x1680x1880 mm
Net weight	2850 kg	2900 kg	1850 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
