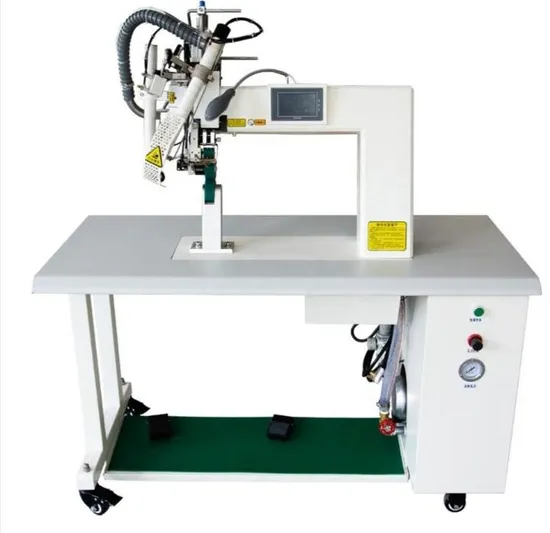

Yq-60s Hot Air Seam Sealing Protective Suit Clothing Machine

Product Description

YQ-60S Hot air seam sealing tape machine
==Technical parameters==

Power consumption:	220V AC 50HZ
Rating efficiency:	1500W
Compressed air:	0.3-0.6MPa
Upper roller lift:	30mm
Effective tape width:	14-22mm
Roller width	25.4mm
Working speed	0-23m/min
Temperature:	up to 700°C
Exterior dimensions(L×W×H ):	1350*600*1550mm
Net weight:	138kg

Product Description 1-Controlled by programmable PLC with high definition display, English touch interface, process can be modified according to
users' requirements.
2-Auto controllable temperature with high stability slightly varies between±2°C, Warning device for
temperature upper limit is installed to protect heating wire.
3-It has the functions of synchro drive of the upper and lower wheel chain, auto compensation, and auto reverse.
...
Detailed Photos
Product Parameters

Power consumption	220V/50Hz
Rated output power	2000W
Working speed	1-24 meter/min
Tempreture	<700°C
Air pressure	0.35-0.6Mpa
Upper roller distance	18-30 mm
Roller width	25.4mm ( Special width can be ordered )
Adhesive tape width	16-24 mm ( Standard )
Size of machine (L * W * H )	1350 * 600 *1530 mm
Net weight of machine	165Kg
Gross weight of machine	200kg

Packaging & Shipping
