Conventional Gear Milling Machine with 30-1500rpm Spindle Speed Range

Product Description

Product Description

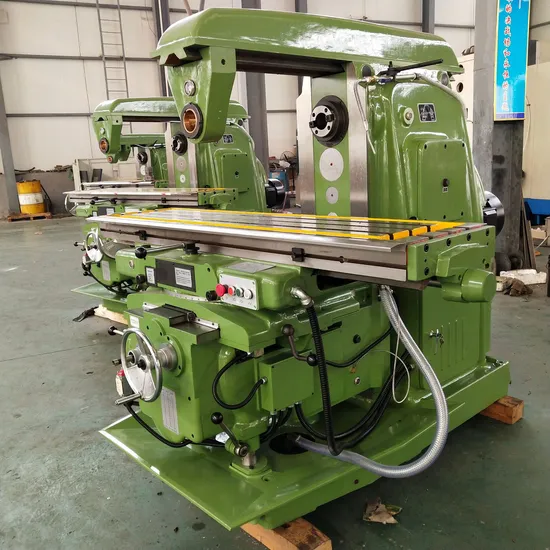

X6140 Swivel Table Horizontal Milling Machine
The X6140 universal lifting table milling machine is a formidable metal cutting marvel, boasting exceptional rigidity and an expansive feed speed range that confidently handles heavy-duty chip loads with ease.
Product Parameters

Specifications	Units	X6140
Table size(length × width)	mm	1700×400
Number/Width/Distance of T-slot	mm	3/18/90
Max. load of table	kg	500
Longitudinal travel (manual/auto)	mm	900/880
Transverse travel (manual/auto)	mm	315/300
Vertical travel (manual/auto)	mm	350/330
Cutting feed speed(X/Y/Z)	mm/min	23.5-1180/23.5-1180/8-394
Rapid feed speed(X/Y/Z)	mm/min	2300/2300/770
Spindle speed range	rpm	30-1500
Spindle speed step	steps	18
Max. swivel angle of work table		±45°
Distance between spindle axis and table surface	mm	30-380
Spindle taper		ISO50 7:24
Spindle bore	mm	Φ29
Spindle motor power	kW	11
Feed motor power	kW	3
Overall dimension(L×W×H)	mm	2556×2159×1770
Net weight	kg	3800

Application
1: The X6140 universal lifting table milling machine serves as a versatile tool, primarily designed for efficient batch production, small-batch manufacturing, and comprehensive support in mechanical processing and tool repair departments.
2: The X6140 universal lifting table milling machine excels in milling a plethora of components, utilizing cylindrical, disc, angle, forming, and end milling cutters. It adeptly processes surfaces, angles, grooves, apertures, and gear formations. By incorporating a universal milling head, original workbench, dividing head, and other accessories, this machine dramatically broadens its processing capabilities.
3: The worktable of the X6140 universal lifting table milling machine offers remarkable flexibility, capable of rotating 45° in both directions. When aligned at a specific angle around its vertical axis and paired with a dividing head, it can intricately mill spiral surfaces such as drill bit grooves, spiral gears, and drum wheels.
After Sales Service
1. A comprehensive Operation Manual accompanies the machine for your convenience.
2. We provide complimentary spare parts during the warranty period, ensuring uninterrupted performance.
3. Our dedicated 24-hour online Service Team is always ready to assist you with any challenges you face.
4. We extend our after-sales support through diverse channels including video calls, videos, phone calls, and online meetings, to ensure that you optimize the machine's potential., to ensure you can use the machine better.
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd. is strategically nestled in the dynamic city of Zhengzhou, the pulsating heart of China. With a wealth of experience in exporting premium machinery, we stand out not only for our steadfast quality products but also for delivering exceptional customer service that leaves a lasting impression.Our array of offerings encompasses cutting-edge machine tools for the global marketplace, promising reliable performance and cost-effectiveness. We take pride in supplying a wide spectrum of machines including Lathe machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, and CNC Machining Centers, all engineered for supreme precision and unmatched efficiency. Our extensive lineup further includes Grinding Machines, Hydraulic Presses, Bending Machines, Drilling Machines, Press Brakes, Shearing Machines, and top-tier machine tool accessories, meeting the diverse demands of various industries. Our seasoned engineers, armed with years of expertise and rigorous professional training, guide us in offering unparalleled support to our customers. Our expert engineers not only perform exhaustive inspections of goods pre-dispatch but also meticulously manage every facet of the production process, ensuring stellar quality at every juncture. As the company's ambassadors, our engineers are unwavering in their commitment to providing insights and support that propel customer satisfaction and operational excellence. We pledge unbroken communication and transparency, meticulously tracking each production phase to deliver products that conform to the pinnacle of standards. Our unwavering goal is to ensure that each machine we manufacture transcends our customers' expectations, delivering not just satisfaction but delight.
FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications. We can choose the best model for you, or you can choose the exact model. You can also send us the product drawing, and we will select the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.
4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set

---
