Glass-Lined Horizontal Storage Tank 8000L/

US$1,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
8000L
Condition
New
Customized
Customized
Certification
ISO9001
Tank Marerial
Metal Tank
Type
Tank Container
Storage Objects
Solid, Liquid
Glass Thickness
0.8 mm to 2.0 mm
Storage Medium
Moncombustible/Nontoxic
Jacketed
with Cooling/Heating Jacket
Transport Package
Expert Export Transportantion
Specification
8000L
Trademark
Huateng Datang
Origin
China Beijing
HS Code
8419899090
Production Capacity
2000set/Year

Product Description


Product specification: 3000L-80000L
Product standard: GB25025-2010, GB/T 150-2011
Application: Widely used in chemical, petroleum, medicine, pesticide, food and other industries. Horizontal glass lined storage tank (storage tank) specifications: 3000L, 4000L, 5000L, 6300L, 8000L, 10000L, 12500L, 16000L, 20000L, 25000L, 30000L, 40000L, 50000L, 63000L, 80000L.
Nominal
volume
VN/L		 Actua
volume
V/L		 Nominal
diameter
D		 Cylinder
length
L		 Nominal diameter of pipe orifice DN Liquid level gauge
Nominal length quantity
Spare
port
a		 Spare port
b1b2		 Spare port
C1C2		 Outlet
d		 Liquid
level gauge
h1-4		 Manhole
m1		 Manhole
m2
3000 3330 1450 1454 80 100 65 80 65 φ500 1000×1
4000 4453 1450 2135 1000×1
5000 5533 1600 2140nlet 1200×1
6300 6847 1750 2185 1400×1
8000 8909 1900 2430 1500×1
10000 11074 2000 2760
150
150		 1600×1
12500 13555 2000 3550 1600×1
16000 17225 2200 3700
150
φ600		 1800×1
20000 21705 2400 3900 2000×1
25000 27595 2800 3450 2100×1
30000 32505 3000 3500 2200×1
40000 43947 3200 4300
200
200
φ600		 2500×1
50000 53848 3400 4700 2600×1
63000 66643 3600 5250 2600×2
80000 84645 3800 6100 2700×2

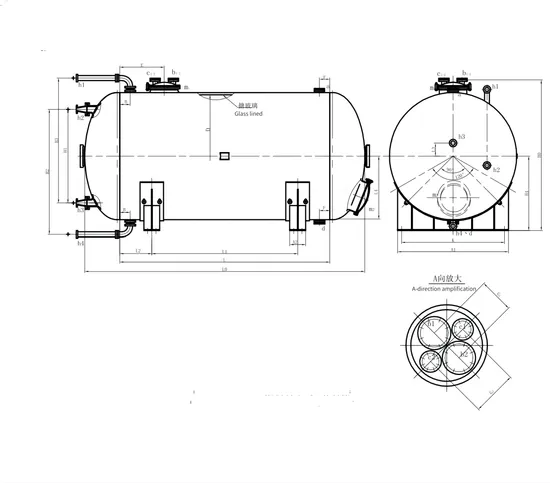

Nominal
volume
VN/L		 Size
L0 L1 L2 L3 L4 H0 H1 H2 H3 H4 A1 A2 K B E F G1
3000 2260 740 357 2112 1000 1089 1300 250 1080
600		 115
290
320
4000 2940 1420 357 2118 1000 1095 1300 250 1080 120
5000 3020 1400 370 2270 1200 1170 1430 250 1180 120
6300 3140 1390 397 2422 1400 1250 1560 250 1300 130
8000 3460 1590 420 2575 1500 1325 1690 250 1420 130
10000 3860 1860 450 2680 1600 1376 1780 250 1490
150
12500 4650 2610 470 2680 1600 1376 1780 250 1490
16000 4900 2700 500 2910 1800 1475 1950 300 1680
300
390
20000 5200 2800 550 3110 2000 1580 2130 300 1890
25000 4950 2250 600 3523 2100 1780 2470 400 2240
700
30000 5100 2240 630 3275 2200 1882 2650 400 2430
40000 6000 2800 750 1120 3932 2500 1985 2820 400 2590
750
200
50000 6500 3100 800 1190 4135 2600 2085 3000 400 2740
63000 7150 3550 850 565 1260 4335 1128 2600 2600 2188 3200 400 2920 150
80000 8100 4210 945 565 1330 4548 1128 2700 2700 2290 3390 400 3110 150
