2021 Sevenstars Newest Powder Filling Machine with Mixer

US$6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SLR-Z100/200
Application
Powder, Liquid, Granules, Powder
Application Area
Metallurgy&Mineral
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Cooling Method
Water Cooling
Mixing Drum Shape
Disc
Stirring Type
Spiral
Warranty
1 year
Working
High Speed Mixer
Motor
Siemens
Heated Method
Self-Friction + Electric Heating +Heat Transfer Oi
Mixing Method
Hot Mixing
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Seaworthy Packing
Specification
CE ISO9001: 2008 SGS
Trademark
BDX
Origin
Jiangsu Zhangjiagang
HS Code
8479820090
Production Capacity
200-3000kg /H or More

Product Description

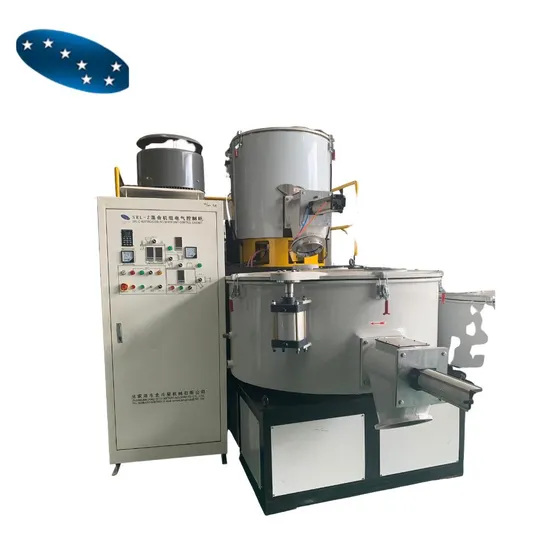

Auxiliary machine :high speed mixer for pp pe pvc bs plastic mixer with productivity 200-3000kg/h
High speed mixer can be used for mixing of powder ,coloring ,drying ,etc .It widely used in medicine ,chemical ,food and other industries.
It has simple structure and easy to clean .
It mian used for PVC's mixing and drying ,for PE and PP'S coloring and drying ,etc.
Main parts and material
Pot body adopt δ10mm SUS304 stainless steel which has very good smooth and rigid surface with features of wearable, corrosion resisting, heat resisting, no-stick with raw material
Hot mixer cover material adopt ZL102 casting aluminum with polished surface
Hot and cooling mixer open adopt cylinder pneumatic drive; the main shaft of hot and cold mixer adopt NSK brand which has features of reliable stable working performance.
Hot and cooling sealing adopt silicon rubber sealing with reliable sealing effect and not deformation even at high temperature.
Stirring paddle past dynamic balance testing which lower noise and improve lifespan
Main advantage hybrid evenly,high speed (only 8-12min once ),Easy to operate and clean ,durable . Advanced design,safe and reliable. Small size(volumetric), light weight and high output(250-1300kg/hr). Low energy consumption,low noise.
Technique parameter
Model
Motor Power(kw) Capacity(kg/h)
SRL-Z100/200
14/22(22)/7.5 180
SRL-Z200/500
30/42(45)/11 350
SRL-Z300/600
40/55(55)/11 480
SRL-Z500/1000
47/67(75)/15 800
SRL-Z800/1600
60/90(90)/22 1200
SRL-W500/1600
47/67(75)/15 800
SRL-W800/2500
83/110(110)/22 1500
