Mini Gap Bed Lathe Machine (Bl-30q)

US$1,500.00-3,123.00 1 piece (MOQ)

Basic Info.

Model NO.
BL-30Q
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Position Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Bench Lathe
Length 750mm, 1000mm
Max.Swing Over Bed
310mm
Max.Swing Over Cross Slide
180mm
Max.Swing Over Gap
450mm
Bed Width
181mm
Spindle Bore
38mm
Color
Blue and White
Distance Between Centers
910mm
Range of Metric Threads
0.4-7mm
Taper of Spindle Bore
M.T.#5
Transport Package
WOOD CASES
Specification
300x914mm
Trademark
UNI-TECH
Origin
CHINA
HS Code
84581900
Production Capacity
120PCS/MONTH

Product Description

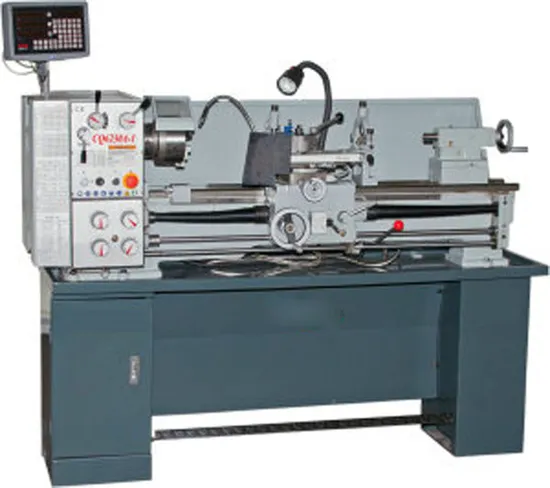

Mini Gap Bed Lathe Machine (Bl-30q)
1. Precision ground and supersonic frequency hardened bed ways.
2. The spindle is supported with precision roller bearing.
3. Headstock gears are made of high quality steel, ground and hardened
4. Removable gap is provided for larger diameter work
5. Easy operating gear box has various feeds and hread cutting function
MODEL BL-30Q
CODE NO. 62003
Max.swing over bed 310mm
Max.swing over cross slide 180mm
Max.swing in gap 450mm
Distance between centers 910mm
Spindle bore 38mm
Taper of spindle bore M.T.#5
Range of spindle speed 65-1400rpm
65-1810rpm optional
Range of longitudinal feeds 0.0527-1.2912mm/rev
Range of cross feeds 0.011-0.276mm/rev
Range of metric threads 0.4-7mm
Range of inch threads 4-60TPI
Taper of tailstock bore M.T.#3
Power of motor 1.1kw.3PH/1.5kw.1PH

Unitary packaging size and weight
Model Packing Dimensions Net Weight Gross Weight
CQ6230A×750 1480×750×1420mm 510kg 609kg
CQ6230A×910 1680×750×1420mm 510kg 609kg

Asunder packaging size and weight
Model Packing Dimensions Net Weight Gross Weight
CQ6230A×750 1480×750×730mm 460kg 530kg
CQ6230A×910 1680×750×730mm 460kg 530kg
Left Stand 600×390×350mm 28kg 35kg

Standard Accessories :
@ 3 Jaw Chuck( 160mm)
@ Change Gears Set
@ M.T.#3 Dead Centers
@ Tool Box & Tools
@ Oil Gun
@ M.T.5/3 Reduction Sleeve
@ Foot Stands
@ Splash Guard
@ Oil Tray		 Optional Accessories:
@ 4 Jaw Chuck( 200mm)
@ Face Plate
@ Steady Rest
@ Follow Rest
@ Work light
@ Foot Brake System
@ Coolant System
@ Live Center
@ Drill Chuck +Drill Arbor
@ Leadscrew Guard
@ Chuck Guard
@ Localizer
@ Clutch For Feed Rod
@ Quick Change Tool Post
@ Digital Readout(2 Axis)
