| Negotiable |
15 Pieces
(MOQ)
|
Basic Info.
Output Type
AC Three Phase
Cooling
Method
Air Cooled
Installation
Method
Fixed
Generator
Type
AC Alternator
Excitation Mode
AC Rotating Exciter
Package Gross Weight
355kg
Transport Package
Plywood Case
Trademark
jlt-power/lighting star
Production Capacity
10000
Product Description
Product Description

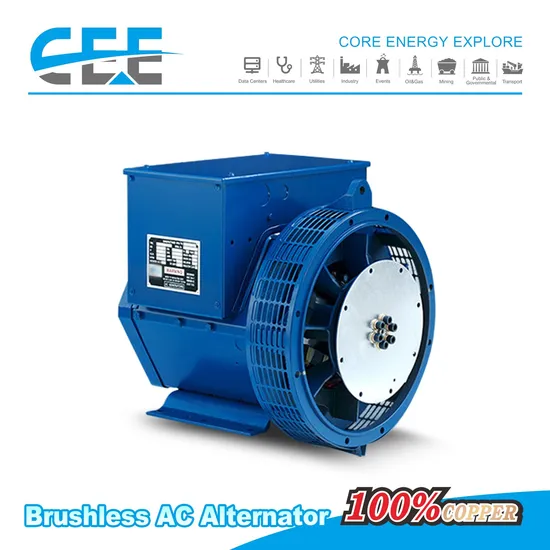

· Brushless synchronous alternator· Output range:6.8kW - 3200kW single-phase and three-phase
· High-performance Convenient installation and maintenance· Three phase 4 wire, optional 50Hz/60Hz, 1500/1800RPM· 4-pole, brushless alternator with AVR, H class insulation, IP23· Be suitable for various brands engine, international standard SAE port, double bearing as optional Specifications:
Product Parameters
| Model | 400V/50Hz PF0.8 ClassH | | 440V/60Hz PF0.8 ClassH | Specifications |
| Prime Power 40ºC | Standby Power 27ºC | | Prime Power 40ºC | Standby Power 27ºC | Single Bearing Packed Size/Weight |
| KW | KVA | KW | KVA | | KW | KVA | KW | KVA | cm | KGS |
| JLT164A | 6.5 | 8.1 | 7.2 | 9.0 | | 8.2 | 10.3 | 9.0 | 11.3 | 49X45X58 | 86 |
| JLT164B | 8.8 | 11.0 | 9.8 | 12.2 | | 11.0 | 13.8 | 12.1 | 15.1 | 49X45X58 | 93 |
| JLT164C | 10.8 | 13.5 | 12.0 | 15.0 | | 13.5 | 16.9 | 14.9 | 18.6 | 49X45X58 | 98 |
| JLT164D | 12.8 | 16.0 | 14.2 | 17.8 | | 16.0 | 20.0 | 17.6 | 22.0 | 49X45X58 | 108 |
| JLT184ES | 16.0 | 20.0 | 17.6 | 22.0 | | 18.8 | 23.5 | 20.7 | 25.9 | 55X49X58 | 117 |
| JLT184E | 18.0 | 22.5 | 20.0 | 25.0 | | 23.0 | 28.8 | 25.3 | 31.6 | 55X49X58 | 133 |
| JLT184FS | 20.0 | 25.0 | 22.0 | 27.5 | | 24.0 | 30.0 | 26.4 | 33.0 | 63X49X58 | 143 |
| JLT184F | 22.0 | 27.5 | 24.4 | 30.5 | | 27.5 | 34.4 | 30.3 | 37.8 | 63X49X58 | 151 |
| JLT184GS | 24.0 | 30.0 | 27.0 | 33.7 | | 28.2 | 35.3 | 31.0 | 38.8 | 63X49X58 | 160 |
| JLT184G | 25.0 | 31.3 | 27.8 | 34.7 | | 30.0 | 37.5 | 33.0 | 41.3 | 63X49X58 | 173 |
| JLT184H | 30.0 | 37.5 | 33.3 | 41.6 | | 37.5 | 46.9 | 41.3 | 51.6 | 70X49X70 | 188 |
| JLT184J | 34.0 | 42.5 | 35.5 | 44.4 | | 40.0 | 50.0 | 44.0 | 55.0 | 70X49X70 | 199 |
| | | | | | | | | | | | |
| JLT224C | 34.0 | 42.5 | 37.4 | 46.8 | | 42.0 | 52.5 | 45.0 | 56.3 | 78X49X84 | 233 |
| JLT224DS | 36.8 | 46.0 | 40.1 | 50.1 | | 42.5 | 53.1 | 46.3 | 57.9 | 78X49X84 | 240 |
| JLT224D | 40.0 | 50.0 | 44.4 | 55.5 | | 50.0 | 62.5 | 53.0 | 66.3 | 78X49X84 | 249 |
| JLT224E | 48.0 | 60.0 | 50.4 | 63.0 | | 56.0 | 70.0 | 60.0 | 75.0 | 86X55X84 | 277 |
| JLT224FS | 54.0 | 67.5 | 58.9 | 73.6 | | 60.8 | 76.0 | 66.2 | 82.8 | 86X55X84 | 295 |
| JLT224F | 58.0 | 72.5 | 64.0 | 80.0 | | 70.0 | 87.5 | 76.0 | 95.0 | 86X55X84 | 313 |
| JLT224G | 68.0 | 85.0 | 72.6 | 90.8 | | 78.0 | 97.5 | 85.0 | 106.3 | 90X55X84 | 355 |
| JLT224GM | 75.0 | 93.8 | 81.6 | 102.0 | | 88.0 | 110.0 | 95.2 | 119.0 | 90X55X84 | 393 |
| | | | | | | | | | | | |
| JLT274CS | 75.0 | 93.8 | 81.8 | 102.2 | | 88.0 | 110.0 | 95.9 | 119.9 | 88X63X94 | 360 |
| JLT274C | 80.0 | 100.0 | 88.0 | 110.0 | | 94.0 | 117.5 | 102.0 | 127.5 | 88X63X94 | 371 |
| JLT274DS | 90.0 | 112.5 | 98.1 | 122.6 | | 108.0 | 135.0 | 117.8 | 147.2 | 88X63X94 | 402 |
| JLT274D | 96.0 | 120.0 | 104.0 | 130.0 | | 110.0 | 137.5 | 120.0 | 150.0 | 88X63X94 | 423 |
| JLT274ES | 100.0 | 125.0 | 109.0 | 136.3 | | 115.0 | 143.8 | 126.5 | 158.1 | 98X63X94 | 430 |
| JLT274E | 112.0 | 140.0 | 120.0 | 150.0 | | 134.0 | 167.5 | 145.0 | 181.3 | 98X63X94 | 460 |
| JLT274FS | 120.0 | 150.0 | 133.2 | 166.5 | | 138.0 | 172.5 | 151.8 | 189.8 | 98X63X94 | 483 |
| JLT274F | 128.0 | 160.0 | 140.0 | 175.0 | | 152.0 | 190.0 | 165.0 | 206.3 | 98X63X94 | 513 |
| JLT274G | 145.6 | 182.0 | 160.0 | 200.0 | | 174.8 | 218.5 | 187.2 | 234.0 | 104X63X94 | 563 |
| JLT274H | 160.0 | 200.0 | 176.0 | 220.0 | | 196.0 | 245.0 | 212.0 | 265.0 | 108X63X94 | 615 |
| JLT274J | 184.0 | 230.0 | 208.0 | 260.0 | | 225.0 | 281.3 | 244.8 | 306.0 | 115X63X94 | 623 |
| JLT274K | 200.0 | 250.0 | 220.0 | 275.0 | | 239.0 | 298.8 | 256.0 | 320.0 | 115X63X94 | 688 |
| | | | | | | | | | | | |
| JLT404C | 200.0 | 250.0 | 220.0 | 275.0 | | 240.0 | 300.0 | 264.0 | 330.0 | 122X70X104 | 800 |
| JLT404DS | 220.0 | 275.0 | 244.2 | 305.3 | | 252.8 | 316.0 | 276.8 | 346.0 | 122X70X104 | 830 |
| JLT404D | 240.0 | 300.0 | 264.0 | 330.0 | | 288.0 | 360.0 | 316.0 | 395.0 | 122X70X104 | 878 |
| JLT404ES | 260.0 | 325.0 | 288.6 | 360.8 | | 300.0 | 375.0 | 330.0 | 412.5 | 122X70X104 | 920 |
| JLT404E | 280.0 | 350.0 | 304.0 | 380.0 | | 336.0 | 420.0 | 364.0 | 455.0 | 122X70X104 | 970 |
| JLT404FS | 300.0 | 375.0 | 330.0 | 412.5 | | 348.0 | 435.0 | 382.8 | 478.5 | 133X70X104 | 1088 |
| JLT404F | 320.0 | 400.0 | 352.0 | 440.0 | | 384.0 | 480.0 | 424.0 | 530.0 | 133X70X104 | 1103 |
| JLT404FM | 360.0 | 450.0 | 396.0 | 495.0 | | 392.0 | 490.0 | 432.0 | 540.0 | 133X70X104 | 1150 |
| | | | | | | | | | | | |
| JLT544C | 400.0 | 500.0 | 416.0 | 520.0 | | 440.0 | 550.0 | 480.0 | 600.0 | 138X80X115 | 1213 |
| JLT544D | 440.0 | 550.0 | 472.0 | 590.0 | | 475.0 | 593.8 | 515.2 | 644.0 | 138X80X115 | 1363 |
| JLT544ES | 450.0 | 562.5 | 495.4 | 619.3 | | 536.0 | 670.0 | 581.6 | 727.0 | 138X80X115 | 1410 |
| JLT544E | 488.0 | 610.0 | 532.0 | 665.0 | | 570.0 | 712.5 | 615.2 | 769.0 | 138X80X115 | 1459 |
| JLT544FS | 500.0 | 625.0 | 555.0 | 693.8 | | 588.0 | 735.0 | 646.8 | 808.5 | 149X80X115 | 1580 |
| JLT544F | 536.0 | 670.0 | 590.4 | 738.0 | | 620.0 | 775.0 | 675.2 | 844.0 | 149X80X115 | 1632 |
| JLT544FM | 560.0 | 700.0 | 616.0 | 770.0 | | 640.0 | 800.0 | 695.2 | 869.0 | 149X80X115 | 1652 |
| JLT544FM1 | 600.0 | 750.0 | 632.0 | 790.0 | | 684.0 | 855.0 | 718.4 | 898.0 | 149X80X115 | 1685 |
| | | | | | | | | | | | |
| JLT634B | 600.0 | 750.0 | 632.0 | 790.0 | | 684.0 | 855.0 | 718.4 | 898.0 | 178X97X133 | 1866 |
| JLT634C | 640.0 | 800.0 | 672.0 | 840.0 | | 733.0 | 916.3 | 766.4 | 958.0 | 178X97X133 | 1950 |
| JLT634D | 728.0 | 910.0 | 764.0 | 955.0 | | 834.0 | 1042.5 | 872.0 | 1090.0 | 178X97X133 | 2002 |
| JLT634E | 800.0 | 1000.0 | 840.0 | 1050.0 | | 916.0 | 1145.0 | 956.0 | 1195.0 | 178X97X133 | 2142 |
| JLT634F | 904.0 | 1130.0 | 948.0 | 1185.0 | | 1019.0 | 1273.8 | 1063.2 | 1329.0 | 178X97X133 | 2375 |
| JLT634G | 1000.0 | 1250.0 | 1050.4 | 1313.0 | | 1109.0 | 1386.3 | 1158.4 | 1448.0 | 186X97X133 | 2721 |
| JLT634GM | 1120.0 | 1400.0 | 1184.0 | 1480.0 | | 1296.0 | 1620.0 | 1388.0 | 1735.0 | 186X97X133 | 2830 |
| | | | | | | | | | | | |
| JLT734B | 1120.0 | 1400.0 | 1200.0 | 1500.0 | | 1300.0 | 1625.0 | 1392.0 | 1740.0 | 186X105X149 | 2750 |
| JLT734C | 1240.0 | 1550.0 | 1328.0 | 1660.0 | | 1452.0 | 1815.0 | 1556.0 | 1945.0 | 186X105X149 | 3000 |
| JLT734D | 1320.0 | 1650.0 | 1416.0 | 1770.0 | | 1548.0 | 1935.0 | 1656.0 | 2070.0 | 215X101X159 | 3275 |
| JLT734E | 1520.0 | 1900.0 | 1628.0 | 2035.0 | | 1768.0 | 2210.0 | 1892.0 | 2365.0 | 215X101X159 | 3560 |
| JLT734F | 1664.0 | 2080.0 | 1800.0 | 2250.0 | | 2000.0 | 2500.0 | 2140.0 | 2675.0 | 220X101X159 | 3830 |
| JLT734G | 1760.0 | 2200.0 | 1888.0 | 2360.0 | | 2028.0 | 2535.0 | 2172.0 | 2715.0 | 220X101X159 | 4000 |
| JLT734H | 2060.0 | 2575.0 | 2224.0 | 2780.0 | | 2350.0 | 2937.5 | 2537.6 | 3172.0 | 234X101X159 | 4300 |
| | | | | | | | | | | | |
| JLT864A | 2100.0 | 2625.0 | 2310.0 | 2887.5 | | 2400.0 | 3000.0 | 2640.0 | 3300.0 | 229X145X161(2) | 4870(2) |
| JLT864B | 2200.0 | 2750.0 | 2420.0 | 3025.0 | | 2500.0 | 3125.0 | 2750.0 | 3437.5 | 229X145X161(2) | 4960(2) |
| JLT864C | 2300.0 | 2875.0 | 2530.0 | 3162.5 | | 2600.0 | 3250.0 | 2860.0 | 3575.0 | 239X145X161(2) | 5350(2) |
| JLT864D | 2400.0 | 3000.0 | 2640.0 | 3300.0 | | 2750.0 | 3437.5 | 3025.0 | 3781.3 | 239X145X161(2) | 5420(2) |
| JLT864E | 2500.0 | 3125.0 | 2750.0 | 3437.5 | | 2850.0 | 3562.5 | 3135.0 | 3918.8 | 255X145X161(2) | 5990(2) |
| JLT864F | 2600.0 | 3250.0 | 2860.0 | 3575.0 | | 3000.0 | 3750.0 | 3300.0 | 4125.0 | 255X145X161(2) | 6070(2) |
| | | | | | | | | | | | |
| JLT964A | 2700.0 | 3375.0 | 2970.0 | 3712.5 | | 3100.0 | 3875.0 | 3410.0 | 4262.5 | 230X155X173(2) | 7480(2) |
| JLT964B | 2800.0 | 3500.0 | 3080.0 | 3850.0 | | 3200.0 | 4000.0 | 3520.0 | 4400.0 | 230X155X173(2) | 7610(2) |
| JLT964C | 2900.0 | 3625.0 | 3190.0 | 3987.5 | | 3300.0 | 4125.0 | 3630.0 | 4537.5 | 240X155X173(2) | 7750(2) |
| JLT964D | 3000.0 | 3750.0 | 3300.0 | 4125.0 | | 3400.0 | 4250.0 | 3740.0 | 4675.0 | 240X155X173(2) | 7870(2) |
| JLT964E | 3100.0 | 3875.0 | 3410.0 | 4262.5 | | 3550.0 | 4437.5 | 3905.0 | 4881.3 | 250X155X173(2) | 7990(2) |
| JLT964F | 3200.0 | 4000.0 | 3520.0 | 4400.0 | | 3650.0 | 4562.5 | 4015.0 | 5018.8 | 250X155X173(2) | 8100(2) |
>>
