Economic EUR Standard Upright Drilling Machine (Z5045/1 Z5040/1 Z5032/1)

Product Description

Drilling Machine (Z5045/1 Z5040/1 Z5032/1)
Features:
Drilling, milling and tapping
Head swivels 360 horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindel lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Our understanding and experience in your market demand, our accurate pricing and excellent service will be your right access Chinese Industrial Supplies. Recommend the most suitable machinery for your market With over 60 years experience in industrial and mechanical industry, we can define the different markets exactly.

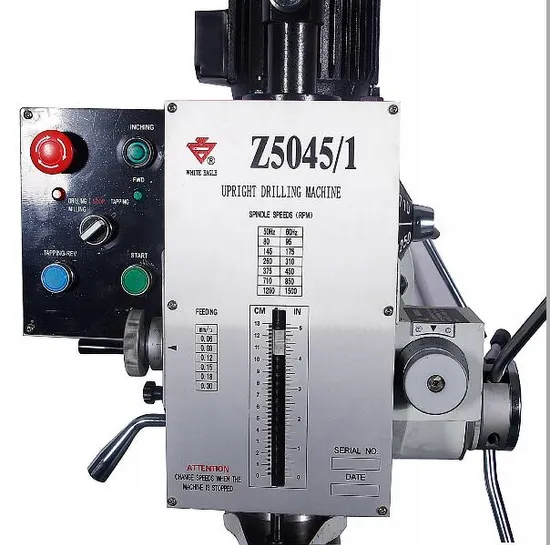

2.Machine photos
3.Specification

Drilling Machine	Z5032/1	Z5040/1	Z5045/1
Max. drilling capacity	32mm	40mm	45mm
Spindle taper	M. T. 3 or R8	M. T. 4	M. T. 4
Spindle travel	130mm	130mm	130mm
Step of speed	6	6	6
Range of spindle speed 50Hz	80-1250 r. p. m	80-1250 r. p. m	80-1250 r. p. m
60Hz	95-1500 r. p. m	95-1500 r. p. m	95-1500 r. p. m
Step of spindle auto-feeding	6	6	6
Range of spindle auto-feeding amount	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Min. distance from spindle axis to column	290mm	290mm	290mm
Max. distance from spindle nose to worktable	725mm	725mm	725mm
Max. distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max. travel of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal)	360°	360°	360°
Max. travel of worktable bracket	600mm	600mm	600mm
Worktable size of avaliablity	380× 300mm	380× 300mm	380× 300mm
Swivel angle of table horizontally	360 degree	360 degree	360 degree
Table leaned	± 45°	± 45°	± 45°
Size of stand worktable of avaliability	417× 416mm	417× 416mm	417× 416mm
Motor power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/Frequency	As customer' s requirement	As customer' s requirement	As customer' s requirement
speed of motor	1400 r. p. m	1400 r. p. m	1400 r. p. m
Cooling pump power	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	437kg/487kg	442kg/492kg	442kg/492kg
Packing size	1850× 750× 1000mm	1850× 750× 1000mm	1850× 750× 1000mm
Loading amount	18pcs/20" container	18pcs/20" container	18pcs/20" container

Standard accessories
drill chuck1-13mm, Removing Block,Drill chuck arbor
Optional accessories:
90mm paraller vise
125mm paraller vise
milling cuttter holder
drill chuck
Mill chuck
Coolant system
Working lamp
Auto-tapping electrical
Boring bar

---
