Aluminum/Aluminium Alloy AAAC Conductor Cairo 397.5mcm for Chile Congo Colombia

Product Description

Aluminum/Aluminium Alloy AAAC Conductor Cairo 397.5mcm for Chile Congo Colombia
AAC AAAC CONDUCTOR PRICE INQUIRY
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor(AAC/AAAC/ACSR),ABC overhead cable as below.
The technical data of Aluminum/Aluminium Alloy AAAC Conductor Cairo 397.5mcm as below for reference:

Duplex service drop
Code Name	Phase conductor				Bare Neutral Message		Nominal Weight ( kg/km )		Allowable Ampacity
	Size & No.of wires	Insulation Thick(mm)	Nominal Diameter (mm)		Size & No.of wires	Rated Strength (kg)	XLPE	Aluminum	( A )
			Bare	OD
AAC
Pekingese	6-Solid	1.14	4.1	6.4	6-7	255	20.8	72.9	78
Collie	6-7	1.14	4.6	6.9	6-7	255	23.8	72.9	78
Cocker	6-7	1.52	4.6	7.7	6-7	255	32.7	72.9	78
Dachshund	4-Solid	1.14	5.2	7.5	6-7	400	26.8	114.6	103
Spaniel	4-7	1.14	5.9	8.2	6-7	400	29.8	116.1	103
Cairn	4-7	1.52	5.9	8.9	6-7	400	40.2	116.1	103
Doberman	2-7	1.14	7.4	9.7	2-7	612	38.7	184.5	136
Airedale	1-19	1.52	8.4	11.5	1-7	-	56.5	233.6	158
Basset	1/0-7	1.52	9.3	12.4	1/0-7	903	64	294.7	182
Malemure	1/0-19	1.52	9.4	12.5	1/0-7	903	64	294.7	182
AAAC
Chihuahua	6-Solid	1.14	4.1	6.4	6-7	499	20.8	72.9	78
VIzsla	6-7	1.14	4.6	6.9	6-7	499	23.8	72.9	78
Harrier	4-Solid	1.14	5.2	7.5	4-7	798	26.8	116.1	103
Whippet	4-7	1.14	5.9	8.2	4-7	798	29.8	116.1	103
Schnauzer	2-7	1.14	7.4	9.7	2-7	1270	38.7	184.5	136
Afghan	1/0-7	1.52	9.3	12.4	1/0-7	2023	64	296.1	182
Hocler	1/0-19	1.52	9.4	12.5	1/0-7	2023	64	296.1	182
ACSR
Setter	6-Solid	1.14	4.1	6.4	6/6/01	540	20.8	72.9	78
Shepherd	6-7	1.14	4.6	6.9	6/6/01	540	23.8	72.9	78
Retriever	6-7	1.52	4.6	7.7	6/6/01	540	32.7	72.9	78
Eskimo	4-Solid	1.14	5.2	7.5	4/6/01	844	26.8	114.6	103
Terrier	4-7	1.14	5.9	8.2	4/6/01	844	29.8	116.1	103
Yorkshirc	4-7	1.52	5.9	8.9	4/6/01	844	40.2	116.1	103
Chow	2-7	1.14	7.4	9.7	2/6/01	1293	38.7	184.5	136
Labrador	1-19	1.52	8.4	11.5	1/6/01	1610	56.5	233.6	158
Bloodhound	1/0-7	1.52	9.3	12.4	1/0-6/1	1987	64	294.7	182
Bull	1/0-19	1.52	9.4	12.5	1/0-6/1	1987	64	294.7	182

Applications of AAC AAAC Conductor	To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Applications of AAC AAAC Conductor	To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation 90°C maximum for crosslinked insulation.
Applications of AAC AAAC Conductor	Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors

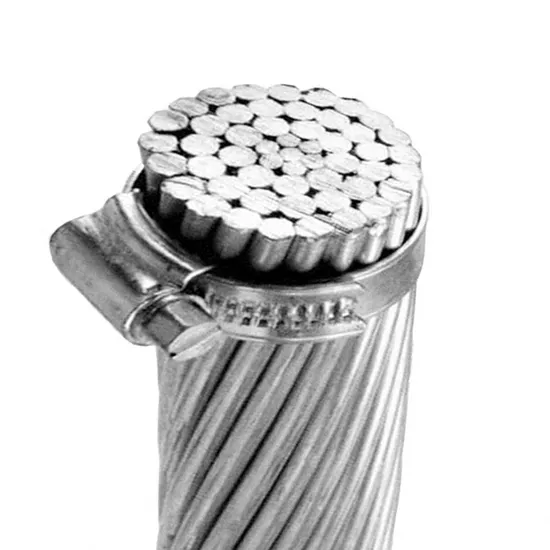

Some Aluminum/Aluminium Alloy AAAC Conductor Cairo 397.5mcm shown as below:
After more than 10 years of development, our customers have spread to more than 40 countries and regions around the world, of which more than 50% are old customers.our power cable,control cable,ABC overhead cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality-KINGYEAR CABLE.
The packaging of AAC AAAC All Aluminum Alloy conductor Overhead Line Aluminum Bare Conductor Wire Aluminum Power Cable as below,customized is accepted.
If Any interesting of the ectric wire,power cable, rubber cable,control cable,bare conductor(AAC/AAAC/ACSR),ABC overhead cable can email us freely: price inquiry !!!
∨∨∨

---
