Our main products are OEM Aluminium LED housings.
Auto & Motocyle parts.
To meet your OEM requirements.
We can also provide CNC maching. Drilling. Treading. Plating.
Painting. Powder coating.
Sand-blasting. E-Coating service...
It would be helpful for a project if you have drawings for us to work off.
Address:No7 xiaoan .luodaao.zhushan village,mazhu town. yuyao ctiy,zhejiang province ,china
Material
| Aluminum alloy ADC12, ADC10, A360, A380, A356,A413,B390,EN47100,EN44100
|
Magnesium alloy AZ91D, AM60B
|
Zinc alloy ZA3#,ZA5#,ZA8#,Zmark3,Zmark5,ZDC3
|
Brass:HPb59-1,HPb62-1
|
Processing Craft
| Drawings→ mould making → die casting →rough machining → CNC machining →surface treatment →product checking→ packing →delivery
|
Tolerance
| ± 0.02mm
|
Surface Treatment
| Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder coating, Sandblasting, Passivation, Spray painting, Etc.
|
Quality Assurance
| ISO9001:2015 Certified, SGS Certification
|
Inspection
| 1.Foundry in-house: 100% inspection on critical dimension; 100% on appea rance.
|
2.Third Party inspection available upon requirement.
|
Mainly Testing Facility
| Three-dimensional measuring instrument (CMM), Salt spray test box, Dynamic balance detector, Pneumatic detection
|
Quality Guarantee
| Two years
|
Features & Advantage
| 1.High machining accuracy, the flatness within 0.1mm.
|
2.High finish appearance, smooth surface roughness is Ra1.6 after machining.
|
3.The machining precision is high and the assembly structure is seamless.
|
4.Smooth appearance, corrosion resistance.
|
5.Pass Salt Spray Test with 144 Hours.
|
Standard
| 1.Aluminum alloy : ISO3522-84, ASTMB85-96, ASTMB597-98
|
2.Magnesium alloy : ISO/DIS16220-1999, ASTMB93/B93M-98,JISH2222-1991
|
3.Zinc alloy: ISO301-1981, ASTMB86-98, ASTMB240-98, ASTMB327-98
|

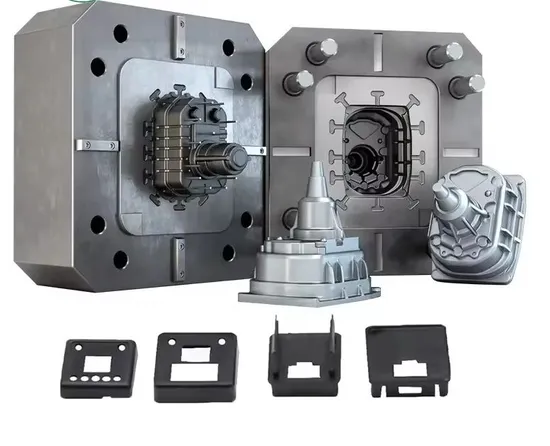

| Service Area | aluminum alloy die casting mold, magnesium alloy die casting molds single color plastic injection moulds and double color plastic injection moulds |
| Material / Alloy | Aluminum, Zinc, Magnesium |
| Cavity(Or Slider) Material | Delver, S136H, S136, NAK80, 8407, SKD 61, 738, P20 or be customized. |
| moldbase | LKM / DME / HASCO standard |
| Cavity | Single/ Family mould |
| Process | Rough Machining+Heat Treatment+Finish Machining+Stress Relief+polishing(High gloss polishing)+texturing+Assembling+1st Trial+Modification+2nd Trial(Dimensions are OK)+Surface Treatment(High gloss Polish, mirror Polishing or texturing)+Nitriding or Balzers |
| Applied software for drawings | CAD, UG, PRO/E, CAM/CAE, solidwork and etc |
| ROHS | Rohs compliance |
| After-sale service | Guaranteed |
