Basic Info.
Shank
Twisted Shank/Spiral Shank
Length
1.5",1.75 ",2",2.5",3",3.5",4"
Transport Package
Standard Export Package
Production Capacity
1000ton/Month
Product Description

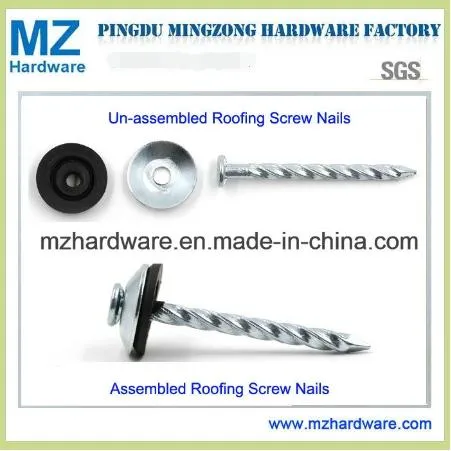

Type: Umbrella Head Roofing Nails
Materials: Q195,Q235 or according to your request.
Head: Umbrella head
Shank: twisted shank/Spiral shank
Point: diamond point
Shank Diameter: 9BWG~13BWG.
Length: 1.5",1.75 ",2",2.5",3",3.5",4" or according to your request.
Treatment: bright(polished) or galvanized or according to your request.
Standard Packing: 7LBS 8Boxes/CTN, 25Kgs/Bag,50Kgs/Gunny Bag or according to your request.
Application: Roofing nails are widely used for roof installation, fastening roofing felt, roofing flashing, woodworking or other construction industry fields.
Learn more ()
| Specification | Length
(mm) | Shank Diameter
(mm) | Head Diameter
(mm) |
| BWG 8*2" | 50.8 | 4.19 | 20 |
| BWG 8*2-1/2" | 63.5 | 4.19 | 20 |
| BWG 8*3" | 76.2 | 4.19 | 20 |
| BWG 9*1-1/2" | 38.1 | 3.73 | 20 |
| BWG 9*1-3/4" | 44.5 | 3.73 | 20 |
| BWG 9*2" | 50.8 | 3.73 | 20 |
| BWG 9*2-1/2" | 63.5 | 3.73 | 20 |
| BWG9*3" | 76.2 | 3.73 | 20 |
| BWG10*1-3/4" | 44.5 | 3.37 | 20 |
| BWG10*2" | 50.8 | 3.37 | 20 |
| BWG10*2-1/2" | 63.5 | 3.37 | 20 |
| BWG11*1-1/2" | 38.1 | 3.02 | 18 |
| BWG11*1-3/4" | 44.5 | 3.02 | 18 |
| BWG11*2" | 50.8 | 3.02 | 18 |
| BWG11*2-1/2" | 63.5 | 3.02 | 18 |
| BWG12*1-1/2" | 38.1 | 2.74 | 18 |
| BWG12*1-3/4" | 44.5 | 2.74 | 18 |
| BWG12*2" | 50.8 | 2.74 | 18 |
| BWG13*1-3/4'' | 44.5 | 2.41 | 15 |
| BWG13*2'' | 50.8 | 2.41 | 15 |
| BWG13*2-1/2'' | 63.5 | 2.41 | 15 |
| BWG13*3'' | 76.2 | 2.41 | 15 |
>>
