Precision CNC External Grinding Machine for Cylindrical Parts

Product Description

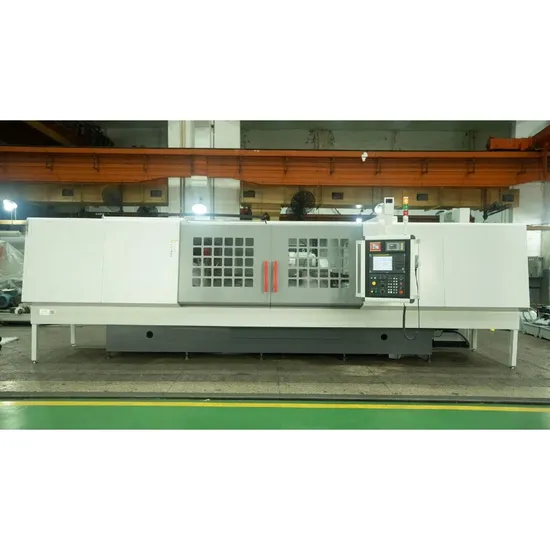

Machine Picture
Machine Introduction
This machine tool is a CNC cylindrical grinder. UB1350 is suitable for grinding the cylindrical surface of a cylindrical or conical rotary workpiece. Workpieces are less than or equal to 3.0 m in length.
The movable layout of the worktable longitudinal reciprocates and the wheelhead feeds crosswise. All are driven by AC servo motor ball screw drive.The spindle rotation of the grinding wheel is supported by static and static pressure bearing.The rotation speed of workpiece can realized by infinitely variable speed. The grinder machine adopts Siemens Sinumerik 828D numerical control system and PLC system as the machine control platform.Control the feed of the worktable (Z axle) and the wheelhead(X axle),It can complete automatic cycle grinding of multi-stage cylindrical grinding under the condition of one installation of the workpiece.It has various functions such as wheelhead automatic feed,Coarse and fine grinding,worktable automatic jump displacement,automatic switch of workpiece speed,Self-dressing wheel,Automatic compensation after trimming and circular action safety interlock and other functions.
Machine Applications
This machine tool is a numerical control cylindrical grinder, which is suitable for grinding cylindrical or conical rotary body workpieces. The overall layout of the machine tool adopts a worktable mobile structure.
Machine Features
The workbench moves back and forth longitudinally, and the grinding wheel frame moves laterally. Both are driven by AC servo motors and ball rods. The rotation of the grinding wheel spindle is supported by dynamic and static pressure bearings, and the workpiece only rotates and can be steplessly adjusted.
Machine Specifications
Max. grinding dia. Φ500mm
Min. grinding dia. Φ25mm
Max. workpiece length 3000mm
Max. workpiece weight 1000Kg
Workpiece rotational speed 16-160r/min
Center height 270mm
Centers of workhead Metric #6
Centers of tailstock Metric #6
Tailstock sleeve travel 70mm
Size of grinding wheel Φ750×75×Φ305mm
Wheel peripheral velocity 45m/s
Wheelhead transverse feed speed 0.1~2000mm/min
Max. Movement of wheelhead 350mm
Lengthwise travel rate of worktable 10~4000mm/min
Max.movement of worktable 3000mm
Min. NC resolution 0.001mm
Wheelhead motor 15kW
Workhead motor 5.5kW
worktable mobile AC servo motor 22Nm
Machine Configuration
Working accuracy-standard test piece(Φ100×1000mm)
Roundness 0.0025 mm
Longitudinal section diameter consistency 0.008 mm
Surface roughness Ra0.32 μm

Position accuracy of CNC shaft
Wheelhead(X axle) Unidirectional positioning accuracy 0.008 mm
Wheelhead(X axle)Unidirectional repeated positioning accuracy 0.004 mm
Worktable(Z axle)Unidirectional positioning accuracy 0.024mm
Worktable(Z axle) Unidirectional repeated positioning accuracy 0.013mm

---
