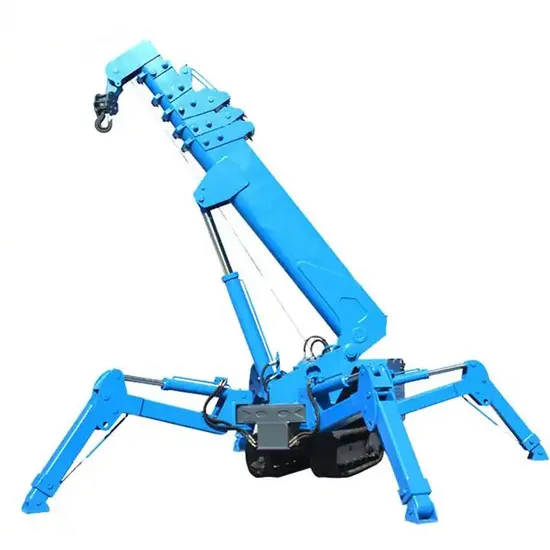

Mass Production Lifting Crawler Crane Small Oil Electric Dual Purpose Spider Cranes

Product Description

Product Description
Product Parameters For specific product parameters, please view the table below.

3T Spider hanging
Product Parameters WT3.0
Model		MS-WT3.0
Specification		2.95T*1.3m
Maximum Working Radius		8.3m*1T
Maximum Ground Lifting Height		9.2m
Maximum Underground Lifting Height
Winch Device	Hook Speed	12m/min 4 ropes
	Rope	φ12mm*50m
Telescopic System	Boom Type	Full 5-corner automatic 5section
	Boom Length	2.8m-8.3m(2.5 meters 5 knots)
	Telescopic Length/Time	2.8m-8.3m/25sec(During growth 20sec)
Up and Downs	Boom Angle/Time	0°-80°/18sec(During growth 16sec)
Slew System	Slew Angle/Time	0°-360°(Continuous)/2.1rpm
Outrigger	Outrigger Active Form	Manual rotation. Hydraulic extension. Manual grounding Manual adjustment for the 1,3 section Automatic for the 2section
	Maximum Extended Dimensions	(Left,right)5100mm*(front, back)4060mm
Traction system	Walking Way	Hydraulic motor drive
	Walking Speed	before and after0-2.5KM/h
	Grade Ability	20°
	Ground Length*Width	1450mm*230mm*2 strip
	Ground Pressure	49.0Kpa(0.50kgf/cm²)
Electric Motor	Model	Three-phase AC asynchronous motor
	Working Voltage	380V(HZ50)
	Power	5.5KW
Diesel Engine	Model	You pu2V80
	Emission Standard	National II
	Maximum Output	5.5KW
	Starting Method	Electric starting
	Fuel	Fuel
System voltage	12V
Vehicle size	Length*Width*Height	3200mm*980mm*1750mm
weight	Vehicle Weight	3T
5T Spider hanging
Product Parameters WT5.0
Model		MS-WT5.0
Specification		5.00T*2.0m
Maximum Working Radius		16m*0.21T
Maximum Ground Lifting Height		16.8m
Maximum Underground Lifting Height
Winch Device	Hook Speed	12m/min 4ropes
	Rope	φ12mm*80m
Telescopic System	Boom Type	Hexagonal automatic 5-segment
	Boom Length	4.7m-16.5m(4 meters 5 knots)
	Telescopic Length/Time	11.7m/45sec(During growth 38sec)
Up and Downs	Boom Angle/Time	0°-80°/24.5sec(During growth 17.0sec)
Slew System	Slew Angle/Time	0°-360°(Continuous)/2.1rpm
Outrigger	Outrigger Active Form	Manual rotation. Hydraulic extension. hydraulic ground Manual adjustment for the 1 section Automatic for the 2,3section
	Maximum Extended Dimensions	(Left,right)5670mm*(forward)5510mm*(back)5030mm
Traction system	Walking Way	Hydraulic motor drive
	Walking Speed	forward,back0-2.5KM/h
	Grade Ability	20°
	Ground Length*Width	1720mm*350mm*2strip
	Ground Pressure	49.0Kpa(0.50kgf/cm²)
Electric Motor	Model	Three-phase AC asynchronous motor
	Working Voltage	380V(HZ50)
	Power	11KW
Diesel Engine	Model	Yunnei 490 (National II)
	Emission Standard	National II
	Maximum Output	37KW
	Starting Method	Electric starting
	Fuel	Fuel
System voltage	24V
Vehicle size	Length*Width*Height	4600mm*1430mm*2170mm
weight	Vehicle Weight	6.55T
8T Spider hanging
Parameters WT8.0
Model		MS-WT8.0
Specification		8.00T*2.3m
Maximum Working Radius		16m*0.2T
Maximum Ground Lifting Height		17.8m
Maximum Underground Lifting Height
Winch Device	Hook Speed	12m/min 4 ropes
	Rope	φ12mm*100m
Telescopic System	Boom Type	Full automatic 5section
	Boom Length	4.85m-17m(4.5 meters 5 knots)
	Telescopic Length/Time	17m/54sec(During growth 41sec)
Up and Downs	Boom Angle/Time	0°-80°/24.5sec(During growth 17.0sec)
Slew System	Slew Angle/Time	0°-360°(Continuous)/2.1rpm
Outrigger	Outrigger Active Form	Manual rotation. Hydraulic extension. Hydraulic grounding Manual adjustment for the 1 section Automatic for the 2,3section
	Maximum Extended Dimensions	about(Left,right)6400mm*(front)6100mm*(back)5300mm
Traction system	Walking Way	Hydraulic motor
	Walking Speed	forward,back0-2.5KM/h
	Grade Ability	20°
	Ground Length*Width	1720mm*350mm*2strip
	Ground Pressure	49.0Kpa(0.50kgf/cm²)
Electric Motor	Model	Three-phase AC asynchronous motor
	Working Voltage	380V(HZ50)
	Power	15KW
Diesel Engine	Model	Yunnei 490 supercharged
	Emission Standard	National II
	Maximum Output	47KW
	Starting Method	Electric starting
	Fuel	Fuel
System voltage	24V
Vehicle size	Length*Width*Height	4950mm*1560mm*2235mm
weight	Vehicle Weight	about 7.6T
10T Spider hanging
Product Parameters WT10.0
Model		MS-WT10.0
Specification		10.00T*2.3m
Maximum Working Radius		17.5m*0.2T
Maximum Ground Lifting Height		19.6m
Maximum Underground Lifting Height
Winch Device	Hook Speed	12m/min 4 ropes
	Rope	φ16mm*100m
Telescopic System	Boom Type	Hexagonal automatic 5-segment
	Boom Length	5.55m-19m(5 meters 5 knots)
	Telescopic Length/Time	19m/54sec(During growth 41sec)
Up and Downs	Boom Angle/Time	0°-80°/24.5sec(During growth 17.0sec)
Slew System	Slew Angle/Time	0°-360°(Continuous)/2.1rpm
Outrigger	Outrigger Active Form	Manual rotation. Hydraulic extension. Hydraulic grounding Manual adjustment for the 1 section Automatic for the 2,3section
	Maximum Extended Dimensions	about(left,right)7400mm*(front)7100mm*(back)6300mm
Traction system	Walking Way	Hydraulic motor
	Walking Speed	front,back 0-2.5KM/h
	Grade Ability	20°
	Ground Length*Width	2200mm*400mm*2strip
	Ground Pressure	49.0Kpa(0.50kgf/cm²)
Electric Motor	Model	Three-phase AC asynchronous motor
	Working Voltage	380V(HZ50)
	Power	15KW
Diesel Engine	Model	Yunnei 4102/Weifang 4108 supercharger
	Emission Standard	National II
	Maximum Output	81KW/91KW
	Starting Method	Electric starting
	Fuel	Fuel
System voltage	24V
Vehicle size	Length*Width*Height	about 5450mm*1760mm*2530mm
weight	Vehicle Weight	about 8.5T

Detailed Photos
Product display
Company Profile Henan Maysun Machinery Co., Ltd. was founded in 2023. It is a technology-based enterprise integrating research and development, sales and service of branch crusher, copper wire granulator, pile driver and hydraulic scissor lift. Our company is located in Puyang City, Henan Province, with a beautiful environment and convenient transportation. Our company has experienced employees who are committed to strict quality inspection and attentive customer service, and are able to discuss customer needs at any time to ensure customer satisfaction. Maysun Machinery also has been committed to the field of new energy, has solved the integration of the supply quantity of pile driver for solar energy, electric pile driver, self-propelled hydraulic scissor lift, etc., to provide customers at home and abroad with the best quality products and professional services,

Our Advantages
FAQ 1.
Why choose us?
Rancheng Machinery is a very professional drilling rig supplier in China. We have rich experience in this industry for 11 years. Our products are now available all over the world. We have high quality, competitive price and fast delivery.
2.
who are we?
We are based in Henan, China, start from 2023,sell to Southeast Asia(10.00%),Africa(6.00%). There are total about 11-50 people in our office.
3.
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
4.
what can you buy from us?
Branch crusher,hydraulic scissor lift,copper wire granulator,pile breaking machine,power trowel
5.
Do you offer any custom designs?
Yes, we have our own trading factory. We provide services to partners of the highest range. We produce an excellent product based on your designs.
6,
How to make sure the quality we sent to you is the same as what we said?
We are a gold supplier on ******, order through ****** trade assurance, ensure the safety of your money and the quality of goods.
7.
How to order?
Step 1, please tell us which model and quantity you need; Step 2, then we will make a PI for you to confirm the order details; Step 3, when we have confirmed everything, we can arrange payment; Step 4 Finally we deliver the product within the agreed time.
8.
When will delivery be made?
About 10-15 working days after receiving payment.
9.
After-sales service 1 year warranty for all types of products;
If you find any defective accessories at the first time, we will provide you with new parts for free to replace in your next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
10,
Can we visit your factory ?
Yes, you are warmly welcome to visit us.

---
