| Item description | FPC200D | ||||

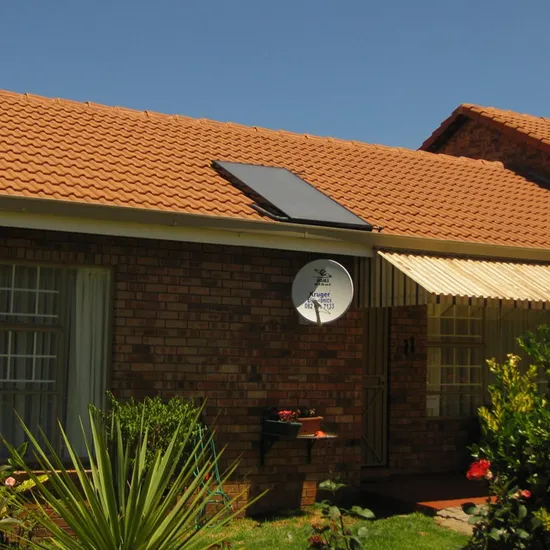

| Collector mounting possibilities (On-roof, In-roof, Façade, On Stand, etc.) | Flat roof/Slope roof | ||||
| Fluid content [L] | 1.66L | ||||
| Number of covers (for FPC=1, for ETC= tube amount | 1 | ||||
| Cover material | Textured tempered glass | ||||
| Cover solar transmittance [%] | 91 | ||||
| Gross Length / width / height [mm] | 2000*1000*80 | ||||
| Gross area [m2] | 2.0 | ||||
| Aperture Length / width / number [mm] | 1950*950 | ||||
| Aperture area [m2] | 1.85m2 | ||||
| Absorber Length / width / thickness [mm] | 1950*950*0.4 | ||||
| Absorber area [m2] | 1.85m2 | ||||
| Absorber material | Aluminium | ||||
| Solar absorptance [%] | 0.94 | ||||
| Hemispherical emittance [%] | 0.08 | ||||
| Absorber coating (type, brand name) | Titanium alloy | ||||
| Header tube material | Red copper | ||||
| Header tube length / inner diameter/ outter diameter [mm] | 1060/Φ22/Φ20.5 | ||||
| Riser tube material | Red copper | ||||
| Riser tube length / inner diameter/ outter diameter [mm] | 1885/Φ10/Φ9 | ||||
| Number of risers | 8 | ||||
| Thermal insulation material | Polyester cotton | ||||
| Thermal insulation thickness | 35 | ||||
| Thermal insulation mass [kg] | 1.9KG | ||||
| Thermal insulation thermal conductivity [W/(m·K] | 0.039 | ||||
| Casing material | Aluminium alloy | ||||
| Sealing material | EPDM | ||||
| Maximum operation pressure | 1.2MPa | ||||
| Maximum operation temperature | 120ºC | ||||
| Installation angel range of collector | 15°~75° | ||||
| Recommend heat transfer medium | Water or Antifreeze | ||||
