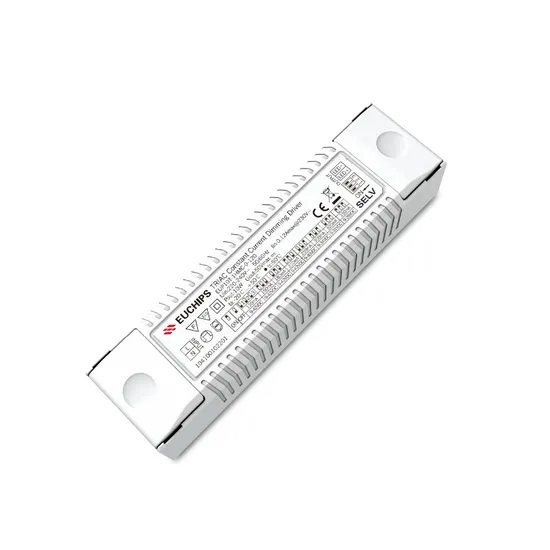

Euchips 10/12/15/20/30/45/60W Constant Current Triac Lighting Dimmable LED Driver

Product Description

Product Description Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load
7. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
10W 120~350mA Phase-cut Constant Current LED Driver EUP10T-1HMC-0-120

Model	EUP10T-1HMC-0-120
Input	Efficiency	75%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency	50/60Hz
	Current	0.12Amax@230VAC, Full load
	Inrush Current	Cold start, 8A@230VAC 200us
	No load power	≤2.5w
	Current/Voltage/Power	120mA/9-42VDC/5.04W	150mA/9-42VDC/6.3W	180mA/9-42VDC/7.56W	210mA/9-42VDC/8.82W
		250mA/9-40VDC/10W	300mA/9-33VDC/9.9W	320mA/9-31VDC/9.92W	350mA/9-28DC/9.8W
	Ripple Current	<3%
Output	Channel	1
	Current Tolerance	±7%
	No Load Output Voltage	50V Max
	Turn On Delay Time	<1s, at 230Vac
Function	Dimming Mode	Triac		ELV
Protection	Short Circuit	Close output,recovers automatically after fault removed
	Over Load	When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced.
	Withstand Voltage	I/P-O/P: 1500Vac/1min/<5mA
	Surge	L-N:500V
	Working Temp.	-20ºC~50ºC
	Storage Temp.; Humidity	-40ºC~85ºC 20-90%RH
	Tc	85ºC
	Material	PC
Others	IP Rating	IP20
	Lifetime	50,000h@tc:75ºC
	Warranty Condition	5 years
	Switch Cycle	>100,000 times
	Packing(weight)	Net weight: 58g±5%/PCS; 100PCS/Carton; 6.3kg±5%/Carton; Carton Size: 56.5*22.3*12.5CM(L*W*H)
	Dimension	110*30*22.6mm(L*W*H)

10W 350~700mA Phase-cut Constant Current LED Driver EUP10T-1HMC-0-350

Model	EUP10T-1HMC-0-350
Input	Efficiency	73%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency	50/60Hz
	Current	0.12Amax@230VAC, Full load
	Inrush Current	Cold start, 28A(twidth=30us measured at 50% Ipeak@230VAC
Output	Current/Voltage/Power	350mA/2-21VDC/7.35W 400mA/2-21VDC/8.4W 450mA/2-21VDC/9.45W 500mA/2-20VDC/10W 550mA/2-18VDC/9.9W 600mA/2-16VDC/9.6W 650mA/2-15VDC/9.75W 700mA/2-14VDC/9.8W
	Ripple Current	<3%
	Channel	1
	Current Tolerance	±5%
	No Load Output Voltage	25V Max
	Turn On Delay Time	<1s, at 230Vac
Function	Dimming Mode	Triac	ELV
Protection	Short Circuit	Close output,recovers automatically after fault removed
	Over Load	When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced.
Others	Working Temp.	-20ºC~50ºC
	Storage Temp.; Humidity	-40ºC~85ºC, 20-90%RH
	Tc	75ºC
	Material	PC
	IP Rating	IP20
	Lifetime	30,000h@tc:75ºC
	Warranty Condition	3 years
	Switch Cycle	>15,000 times
	Packing(weight)	Net weight: 90g±5%/PCS; 100PCS/Carton; 7kg±5%/Carton; Carton Size: 51.7*23.7*142cm(L*W*H)
	Dimension	110*30*22mm(L*W*H)

12W 180/240/300mA Constant Current Phase-cut Driver EUP12T-1HMC-0

Model		EUP12T-1HMC-0
Output	Current	180mA	240mA	300mA
	Voltage	9-42VDC	9-42VDC	9-40VDC
	Rated power	7.56W	10.08W	12W
	Current accuracy	±5%
	No load output voltage	48VDC
	Output LF current ripple(< 120 Hz)	<3%
	Channels	1
Input	Voltage	200VAC - 240VAC
	Frequency	50/60Hz
	Current	0.2Amax@230VAC
	Dimming voltage range	40VAC - 240VAC
	Power factor	>0.5@230VAC,full load
	Efficiency	80%@230VAC,full load
	Inrush current	Cold start,15A(twidth=22us measured at 50% Ipeak) @230VAC
Protection	Short circuit	Close output,recovers automatically after fault removed
	Over load	When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
	Over temperature	Shut down the output, recovers automatically when temp. back to normal.
Function	Dimming	Triac/ELV
Others	Dimension	150 *43*29 mm(L*W*H)
	G.W	130g
	Working temp.	-20ºC ~ 50ºC
	Relative humidity	20~90% RH

15W 350/400/450/500mA*1ch Phase-cut Constant Current LED Dimming Driver EUP15T-1HMC-0

Model	EUP15T-1HMC-0
Input	Efficiency	77%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency	50/60Hz
	Power Factor	≥0.95@230VAC, Full load
	THD	<20%@230VAC, Full load
	Current	0.1Amax@230VAC, Full load
	Inrush Current	Cold start, 6A(twidth=30us measured at 50% Ipeak@230VAC
Output	Current/Voltage/Power	350mA/9-40VDC/14W400mA/9-37VDC/14.8W450mA/9-33VDC/14.85W 500mA/9-30VDC/15W
	Ripple Current	<3%
	Channel	1
	Current Tolerance	±5%
	No Load Output Voltage	48V Max
	Turn On Delay Time	<1s, at 230Vac
Function	Dimming Mode	Triac	ELV
Protection	Over temperature	Shut down the output, recovers automatically when temp. back to normal.
	Short Circuit	Shut down the output automatically recovers after faulty condition is removed.
	Over Load	When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced.
Others	Working Temp.	-20ºC~50ºC
	Storage Temp.; Humidity	-40ºC~85ºC, 20-90%RH
	Tc	90ºC
	Material	PC
	IP Rating	IP20
	Lifetime	30,000h@tc:75ºC
	Warranty Condition	3 years
	Switch Cycle	>15,000 times
	Packing Size	Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H)
	Dimension	150*43*29mm(L*W*H)

20W 350/400/450/500/550/600/650/700mA Phase-cut dimmable constant current led driver EUP20T-1HMC-0

Model	EUP20T-1HMC-0
Input	Efficiency	81%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency	50/60Hz
	Power Factor	≥0.95@230VAC,full load
	Current	0.12Amax@230VAC,
	THD	<20%@230VAC,full load
	Inrush Current	Cold start, 15A(twidth=30us measured at 50% Ipeak@230VAC
Output	Current/Voltage/Power	350mA/9-40VDC/14W 450mA/9-40VDC/18W 550mA/9-36VDC/19.8W 650mA/9-30VDC/19.5W
		400mA/9-40VDC/16W 500mA/9-40VDC/20W 600mA/9-33VDC/19.8W 700mA/9-28VDC/19.6W
	Ripple Current	<3%
	Channel	1
	Current Tolerance	±5%
	No Load Output Voltage	48V Max
	Turn On Delay Time	<1s, at 230Vac
Function	Dimming Mode	Triac/ELV
Protection	Over temperature	Shut down the output, recovers automatically when temp. back to normal.
	Short Circuit	Shut down the output automatically recovers after faulty condition is removed.
	Over Load	When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced.
Others	Working Temp.	-20ºC~50ºC
	Storage Temp.; Humidity	-40ºC~85ºC 20-90%RH
	Tc	90ºC
	Material	PC
	IP Rating	IP20
	Lifetime	30,000h@tc:75ºC
	Warranty Condition	3 years
	Switch Cycle	>15,000 times
	Packing Size	Net weight: 130g±5%/PCS; 50PCS/Carton; 7kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H)
	Dimension	150*43*29mm(L*W*H)

550mA/600mA/650mA/700mA/750mA/800mA/850mA/900mA*1ch 30W Phase-cut Constant Current LED Driver EUP30T-1HMC-0

Model		EUP30T-1HMC-0
Output	Current	550mA	600mA	650mA	700mA
	Voltage	9-42VDC	9-42VDC	9-42VDC	9-42VDC
	Power	23.1W	25.2W	27.3W	29.4W
	Current	750mA	800mA	850mA	900mA
	Voltage	9-40VDC	9-38VDC	9-35VDC	9 -33VDC
	Power	30W	30.4W	29.75W	29.7W
	Current accuracy	±5%
	No load output voltage	50VDC Max
	Output LF current ripple(< 120 Hz)	<3%
	Channels	1
Input	Voltage	220- 240VAC
	Frequency	50/60Hz
	Current	0.17Amax@230VAC
	Power factor	>0.9@230VAC,full load
	THD	<20%@230VAC,full load
	Efficiency	82%@230VAC,full load
	Inrush current	Cold start,15A(twidth=24us measured at 50% Ipeak) @230VAC
Protection	Short circuit	Close output,recovers automatically after fault removed
	Over load	When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
	Over temperature	Shut down the output, recovers automatically when temp. back to normal.
Function	Dimming	Triac/ELV
Others	Dimension	185*42.5*28.5 mm(L*W*H)
	G.W	150g
	Working temp.	-20ºC ~ 50ºC
	Relative humidity	20~90% RH

45W 500/700/900/1050mA*1ch Phase-cut Constant Current LED Driver EUP45T-1WMC-0

Model	EUP45T-1WMC-0
Input	Efficiency	87%@230VAC, Full load
	Voltage	200VAC-240VAC
	Frequency	50/60Hz
	Power Factor	>0.5@230VAC, Full load
	Current	0.4Amax@230VAC, Full load
	Dimming voltage range	40-240VAC
	Inrush Current	20A@230VAC
Output	Current/Voltage/Power	500mA/33-65VDC/32.5W 700mA/33-65VDC/45.5W 900mA/33-50VDC/45W 1050mA/33-42VDC/44.1W
	Channel	1
	Current Tolerance	±7%
	No Load Output Voltage	84V Max
	Turn On Delay Time	<1s, at 230Vac
	Ripple Current	<3%
Function	Dimming Mode	Triac	ELV
Protection	Short Circuit	Hiccups, recovers automatically after fault condition removed
	Over Current	Hiccups, recovers automatically after fault condition removed
Others	Working Temp.	-20ºC~40ºC
	Storage Temp.; Humidity	-40ºC~85ºC, 20-90%RH
	Tc	90ºC
	Material	PC
	IP Rating	IP20
	Lifetime	30,000h@tc:90ºC
	Warranty Condition	3 years
	Switch Cycle	>15,000 times
	Packing Size	Net weight: 225g±5%/PCS; 50PCS/Carton; 11.75kg±5%/Carton; Carton Size: 516*337*179mm(L*W*H)
	Dimension	137*82*31mm(L*W*H)

60W 900/1050/1200/1400mA Constant Current LED Dimmable Driver EUP60T-1HMC-0

Model	EUP60T-1HMC-0
Input	Efficiency	89%@230VAC, Full load
	Voltage	200VAC-240VAC
	Frequency	50/60Hz
	Power Factor	>0.5@230VAC, Full load
	Current	0.6Amax@230VAC, Full load
	Dimming voltage range	40-240VAC
	Inrush Current	35A@230VAC
Output	Current/Voltage/Power	900mA/9-66VDC/59.4W 1050mA/9-57VDC/59.85W 1200mA/9-50VDC/60W 1400mA/9-42VDC/58.8W
	Ripple Current	300mVp-p
	Channel	1
	Current Tolerance	±5%(900mA Current Tolerance: ±7% )
	No Load Output Voltage	85V Max
	Turn On Delay Time	<1s, at 230Vac
Function	Dimming Mode	Triac	ELV
Protection	Short Circuit	Close output, recovers automatically after fault removed
Others	Working Temp.	-20ºC~40ºC
	Storage Temp.; Humidity	-40ºC~85ºC, 20-90%RH
	Tc	90ºC
	Material	PC
	IP Rating	IP20
	Lifetime	30,000h@tc:75ºC
	Warranty Condition	3 years
	Switch Cycle	>15,000 times
	Packing Size	Net weight: 210g±5%/PCS; 50PCS/Carton; 11kg±5%/Carton; Carton Size: 516*337*179mm(L*W*H)
	Dimension	137*82*31mm(L*W*H)

FAQ A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Lead time?
Existing items: Within 1 day after payment received.
New items:About 4-6 weeks after payment received.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging

---
