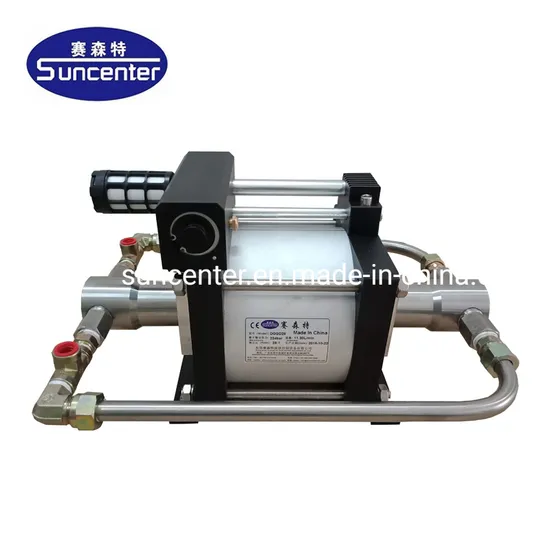

Suncenter Air Driven Liquid CO2 Pressure Booster Filling Pump for XPS Foaming Machine

Product Description

Suncenter Air Driven Liquid CO2 Pressure Booster Filling Pump for XPS Foaming Machine
We offer the most complete range of Air driven liquid pump models in the industry measured for: Capability of ultimate pressure, flow or output horsepower. Compatibility with a broad variety of liquids, such as oil, water and chemical applications. SUNCENTER pumps are air driven at a drive air pressure of 1bar to 8bar (14.5 psi to116 psi) by the normal air compressor. Basically the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is regulated by a pilot operated 4/2 way valve.
Suncenter pumps feature a large air piston joint to a smaller diameter plunger. The pressure ratio is the difference of these two areas and is the method of determining maximum outlet pressure. Higher pressures obtained by using higher pressure ratios.Suncenter model numbers reflect the pumps nominal pressure ratios, while the technical data indicates exact ratios. The outlet pressure is easily to set through a simple air regulator. By multiplying the pressure ratio by the available shop air pressure, the nominal liquid pressure can be calculated.
Applications include:
Pressure testing Suncenter Air Driven Pressure Booster Filling Pump for CO2 foaming Work holding/power clamping Jacking/lifting Valve actuator control Hydraulic cylinder actuation Press safety overload devices Liquid CO2 fire extinguisher filling Metering Precision lubrication and spraying Liquefied gas transfer
Key features include:
Compressed Air driven - no electricity required (connect to normal air compressor) In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar No airline lubricator required Pressures to 640Mpa (6400 bar) Wide range of models with different ratios Built-in-cooling on most models Easy to install, operate and maintain Best price / performance ratio No heat, flame or spark risk and explosion proof Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter pump will automatically start, keep the loop pressure constant
DGGD Series Liquid Pumps(Double acting, single air drive head)
They are characterized by the same features as the DGG pumps single acting, single air drive head types,
but they have less pulsations and deliver approx. 50 % more flow.
Technical specification

Model	Pressure Boost Ratio	Driven air pressure PL	Formula to calculate outlet pressure	MAX Outlet Pressure(bar)*	Liquid inlet Connection	Liquid outlet Connection	MAX Flow (L/min)**
DGGD4	4:1	2-8 bar	4XPL	32	NPT1/2	NPT1/2	70.00
DGGD6	6:1	2-8 bar	6XPL	48	NPT1/2	NPT1/2	48.60
DGGD10	10:1	2-8 bar	10XPL	80	NPT1/2	NPT1/2	30.61
DGGD16	16:1	2-8 bar	16XPL	128	NPT1/2	NPT1/2	19.73
DGGD28	28:1	2-8 bar	28XPL	224	NPT1/2	NPT1/2	11.30
DGGD40	40:1	2-8 bar	40XPL	320	NPT1/2	NPT3/8	7.69
DGGD64	64:1	2-8 bar	64XPL	512	NPT1/2	NPT3/8	4.94
DGGD80	80:1	2-8 bar	80XPL	640	NPT1/2	NPT3/8	3.96
DGGD100	100:1	2-8 bar	100XPL	800	NPT1/2	NPT3/8	3.13
DGGD130	130:1	2-8 bar	130XPL	1040	NPT1/2	M14*1.5	2.40
DGGD175	175:1	2-8 bar	175XPL	1400	NPT3/8	M14*1.5	1.81
DGGD255	255:1	2-8 bar	255XPL	2040	NPT1/4	M14*1.5	1.23
DGGD400	400:1	2-8 bar	400XPL	3200	NPT1/4	M14*1.5	0.79

The outlet liquid pressure=Driven air pressure*boost ratio
In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar
SUNCENTER pumps are self-priming. In general it is not necessary to use an air line lubricator.
The liquid to be pumped flows into the suction chamber by the up-stroke of the drive piston. By this suction effect, the inlet check valve is opened and the outlet check valve is closed. The down-stroke generates the pressure at the liquid side. The inlet check valve is closed and the outlet check valve is opened by the generated pressure. SUNCENTER liquid pumps cycle automatically, where the pressure is built up the numbers of cycles slow down, the pump stops automatically when the output pressure forces are equal. The pump restarts with a slight drop in the outlet pressure or an increase in the air drive pressure. Pump performance can be affected by a number of conditions, such as freezing of muffler or pilot valves (which is caused by moisture in air lines), inadequate inlet air line sizes and dirty filers. Don't reduce the indicated port sizes and consult SUNCENTER for exact flow conditions not shown in charts.
Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.

Our main products including:
High Pressure Booster Pumps (Air Driven Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
High Pressure Systems (Gas/Liquid Booster Stations,FM200 filling machine, Tube Expanding Machine)
High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine,
Valve test bench,Impulse Testing Machine, etc.)

Product Application
Oil Industry, Gas Industry, Chemical Industry, Fire Fighting, Research Institutions etc.

Our service
13 months' free warranty since the purchasing date and free technical support during lifetime
