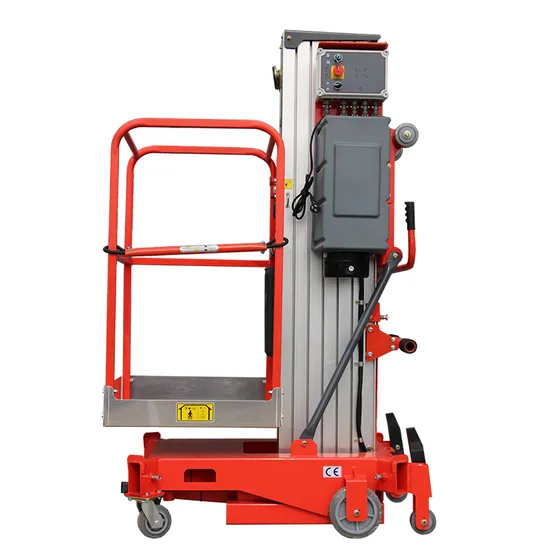

Electric Hydraulic Mobile Aerial Work Single Man Mast Lift Aluminum Lifter Ladder Lifting Equipment

US$1,350.00
1-9 Pieces
US$1,200.00
10+ Pieces

Basic Info.

Model NO.
AL15-10
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Light Level
Moves
Moving
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE
Transport Package
Wooden Box
Specification
customized
Trademark
DAAILIFT
Origin
China

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
50.000kg

Product Description

Model AWP4 AWP6 AWP8 AWP10
Max lifting height 4m 6m 8m 10m
Working height 6m 8m 10m 12m
Load capacity 150kg 150kg 150kg 125kg
Platform size 0.64*0.58m
Voltage 220V 380V 110V (customized)
Overall size(mm) 1180x750x1650 1280x800x1650 1280x800x1980 1360x850x1980
Net weight 250kg 280kg 300kg 320kg

Model AWP06 AWP08 AWP10 AWP12
Max lifting Height 6m 8m 10m 12m
Working height 8m 10m 12m 14m
Load capacity 300kg 300kg 250kg 200kg
Platform size(mm) 1500x600 1500x600 1620x600 1740x600
Voltage We can design the voltage as per your request
Overall size(LxWxH) 1550x900x1970 1550x900x1970 1670x900x2070 1790x900x2070
Net weight 480kg 580kg 680kg 780kg
