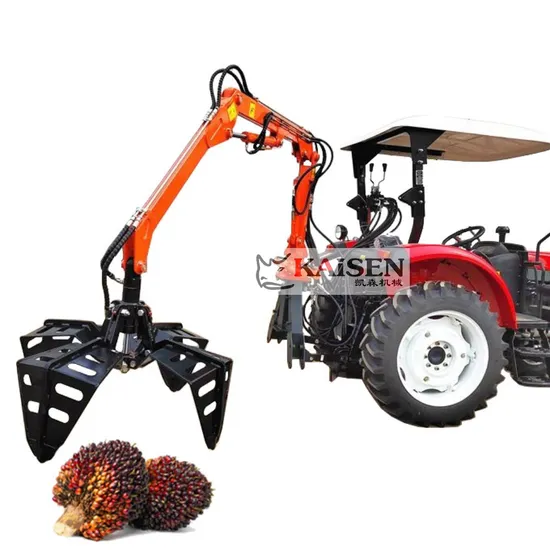

Hydraulic Palm Fruit Grabber Machine for Crawler Dumper /Tractor

Product Description

Performance Characteristics
1. The gripper adopts a four petal structure for quick and fast grabbing.
2. The rotation adopts a rotary support structure, which ensures smooth turning and minimal impact.
3. Main arm rotates 300 °, with a wide working range.
4. Optional PTO hydraulic system for stable performance and flexible handling.
Advantage
1. Lightweight, strong, highly maneuverable and designed to be very stable even when fully loaded.2. Easy to operate by joystick.3. Can be attached to crawler dumper, ATV, truck, car or tractor.4. High reliability, Simple hydraulic and mechanical systems, easy to use and maintain.5. High quality laser cut parts. Timber hydraulic crane with hydraulic boom and grapple.
Technical Parameters

Models	KS2600	KS3000	KS3500	KS4000
Max.outreach	2.6m	3m	3.5m	4m
Matching Tractor	20-25Hp	30-45Hp	≥50Hp	≥55HP
Lifting capacity	100kg	130kg	180kg	180Kg
Slewing angle	360°
Lifting Height	2.6	3	3.5	4
Jaw Grabber Type	4jaws	4jaws	4jaws	4jaws
Max jaw opening	700mm	1000mm	1000mm	1000mm

Product Details
Packaging & Shipping
Product Application

---
