S102 High Quality with Automatic Flame Treatment and UV Drying System 1-8 Color Auto Jar Cap Bottle Screen Printing Machine

Product Description

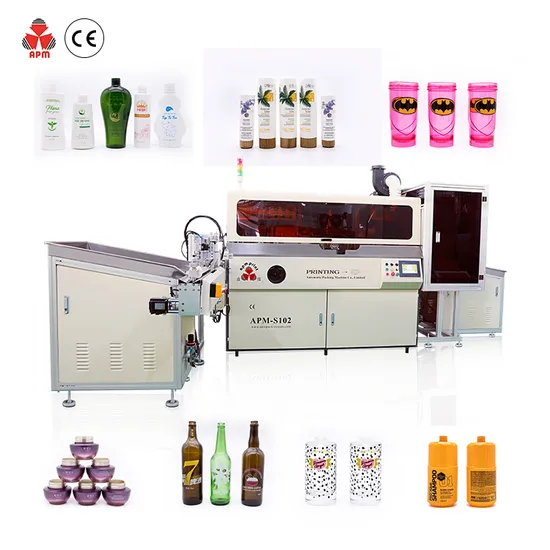

Fully automatic bottle cup screen printer
Application
The APM-S102C is fully automatic bottle cup screen printer, it can print PP, PE, PET plastic cups as well as other materials, just need to change inks. This auto screen printer with auto flame treatment and auto UV drying or LED drying, can add fully auto loader and unloading table to make the printing fully automatic.
Also can be with loading belt and unloading belt if the product is afraid of scratching.
The machine also designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles, hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.
Reliability and speed make the APM-S102C ideal for off-line or in-line 24/7 production.
General Description
1.Automatic 1-8 color screen printing line, each unit can be separated or connected;
2.Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
3.Auto flame treatment;
4.Perfect transmission system. It passes over the bottles fast and smooth;
5.Automatic 180 degree rotation for oval and square bottles;
6.Quick and easy change over from one product to another;
7.LED UV curing system with longer life time and energy saving,electric UV system optional;
8.Reliable PLC control with touch screen display;
9.Promise of quality SMC pneumatic parts and Panasonic, Electric parts. Other brands optional;
10.Automatic unloading.Tech - data

Product Name	S102 Professional Factory Square Bottles Auto Screen Printer
Parameter	APM-S102
	Round container
Printing diameter	20-100mm
Printing length	20-300mm
Max.printing speed	4000pcs/h
	Oval container
Printing width	25-120mm
Printing length	25-300mm
Max.printing speed	5000pcs/h
	Square container
Printing length	100-200mm
Printing width	40-100mm
Max.printing speed	4000pcs/h
Machine dimension	1908*1000*1500mm
Power	380V,3P,50/60Hz
Air supply	5-7bar

Packaging & Shipping
Company Profile
Company ProfileAutomatic Packaging Machinery Co., Ltd. (APM) We are the top supplier of high quality automatic screen printers, bronzing machines, pad printing machines, advertising automatic lines, UV spray lines and accessories. All machines are manufactured according to CE standards. With more than 20 years of R&D and manufacturing experience, we are fully capable of supplying various packaging machines, such as wine bottles, glass bottles, water bottles, cups, mascara bottles, lipsticks, bottles and jars, power boxes, shampoo bottles, barrels, etc.
Exhibition pictures
FAQ
FAQ
Q:How to order from your company?
A:Please send us inquiry and online inquiry through ****** or our official website. Then our sales will reply the quotation to you. If the customer agrees to the offer, the company will sign a sales contract. Next, the buyer fulfills the payment obligation and the dstar machine starts production to the order.
Q:Can we print samples to check the quality?
A:yes
Q:Is there operation training?
Yes, we offer free training on how to install and use the machine, and more importantly, our engineers can go overseas to repair the machine!
Q:How long warraty of the machine?
A:year+lifelong technical supports
Q:Which payment item do you accept?
A: L/C (100% irrevocable sight) or T/T (40% deposit + 60% balance before delivery)

---
