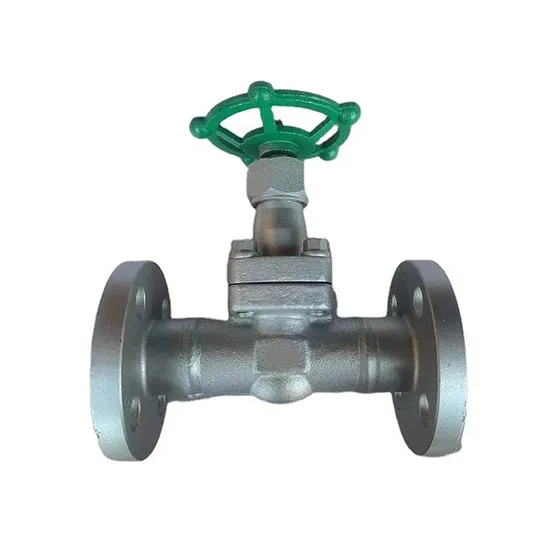

10K 20K Wcb LPG Globe Valve

Product Description

10K 20K WCB LPG Globe valve Size: 1 1/2''~36'' Pressure rating: PN16~PN64 Material: A351 CF8M/CF8/CF3/CF3M,A216 WCB,A352 LCB,A217 WC6/WC9 Suitable Temperature: -196ºC~450ºC(Different temperature choose different materials) Suitable Medium: Water, Steam, Oil and natural gas and other causticity medium (Different raw material for different medium) Technical Specifications: Design & Manufacture standard: DIN 3356 Pressure & Temperature standard: DIN3230 Face to face dimension standard: DIN3202 Flange standard: DIN2543-2545, DIN 2501 Butt welding standard: DIN3239 Test & Inspect: DIN3230 Product Features: Stem nut uses aluminum bronze material. Large valve is provided with thrust bearing to make it opened easily & flexibly. Bolted bonnet, lift stem design. Two piece design of packing gland to avoid stem clogging caused by squishing. Flexible graphite packing for dependable sealing performance. Upper seal design to ensure dependable packing and sealing when valve is fully opened(Replacement of packing under pressure is not recommended). Operation: Hand wheel, Worm wheel, Pneumatic actuator and Electric actuator.

Product Name	10K 20K WCB LPG Globe valve
1. Material	A351 CF8M/CF8/CF3/CF3M,A216 WCB,A352 LCB,A217 WC6/WC9
2. Size	1 1/2''~36'' ( DN40~DN900)
3.Certificate	ISO9001 & CE
4. Port	Full Port
5. Working Pressure	PN16~PN64
6. Connection Ends	Flange
7. Working Temp.	-196~450ºC
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Seal	Metal
10. Locking	Option
11. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Warranty	18 Months after leaving factory
Advantage	OEM/ODM is applicable
Others	We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer

Part	WCB Series	304 Series	316 Series	Cr-Mo(V) Series	LCB, LCC Series
Body & Bonnet	A216 WCB	A351 CF8 A351 CF3	A351 CF8M A351 CF3M	A217 WC5 A217 C9 A217 C5	A352 LCB A352 LCC
Disc	A216 WCB	A351 CF8 A351 CF3	A351 CF8M A351 CF3M	A217 WC5 A217 C9 A217 C5	A352 LCB A352 LCC
Stem	A182 F6a	A182 F304 A182 F304L	A182 F316 A182 F316L	A182 F6a	A182 F6a
Seat Ring	A105/A182 F6a	A182 F304 A182 F304L	A182 F316 A182 F316L	A182 F6a	A182 F6a
Sealing Material	Cr13/Cr13 304/304 HF/304 HF/HF 316/316 HF/316 HF/Monel	304/304 HF/304	316/316 HF/316	HF/Cr13 HF/HF	316/316 HF/Monel HF/316
Backseat	A182 F6a	A182 F304 A182 F304L	A182 F316 A182 316L	A182 F6a	A182 F6a
Yoke Sleeve	A439 D2	A439 D2	A439 D2	A439 D2	A439 D2
Stud	A193 B7	A320 B8	A193 B8	A193 B7	A193 B7
But	A194 2H	A194 8	A193 8M	A194 2H	A194 2H
Packing	Graphite
Gasket	Spiral Wound+Graphite/Ring Joint Metal
Handwheel	Carbon Steel/Ductile Cast Iron

---
