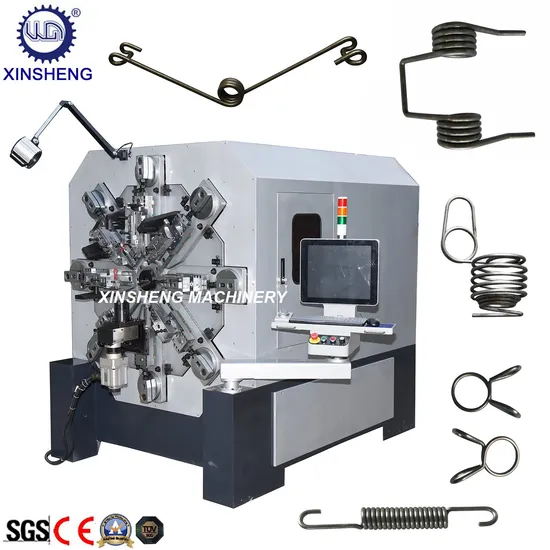

Automatic CNC Camless Compression Extension Torsion Spring Forming Making Machine Wire Forming Machine

Product Description

Product Description
1.Adapt camless design, fast adjusting of machine, high precision and stable quality.
2. Adopt Japan Panasonic Servo motor and Germany Roster reducer.
3. Wire rotation design , stable feeding and more convenient adjustment of machine.
4. English and Chinese interface, easy operation , less experience required.
5. When upgrading the machine technology, it can solve technical difficulty which ordinary CNC wire bending machine or spring machine can not do.

Product Parameters

Model	GT20-10	GT25-10	GT28-12R	GT35-12R
Wire dia(mm)	Hard: 0.2-2.0mm Soft: 0.4-2.8mm	Hard:0.2-2.5mm Soft: 0.4-3.5mm	Hard:0.4-2.8 Soft:0.5-4.0	Hard:0.8-3.5 Soft:2.0-5.0
Max. wire feeding value (mm)	10000.00mm	10000.00mm	10000	10000
Min. wire feeding value (mm)	0.01mm	0.01mm	0.01	0.01
Max. wire feeding speed (m/min)	120m/	120m/	120m/	80/
Max. wire feeding length			Unlimited	Unlimited
Axis number	10	10	12	12
Total output power of servo motors (kw)	7.3KW	10.4KW	13.3KW	17.6KW
Program storage(plus)	3000	3000	3000	3000
Compressor air pressure(kg/cm)	5-6kg/cm²	5-6kg/cm²	5-6	5-6
Probe number	3	3	3	3
Machine Dimensions(L*W*H)(CM)	120*80*160 95*95*75	138*115*181 95*95*75	213*141*204 102*102*92	230*250*178 125*125*103
The feeding tray	100KG	200KG	200KG	300KG
Net weight(kg)	800kg	980kg	1600	2500

Model	GT40-12R	GT48-12R	GT50-12R	GT55-12R
Wire dia(mm)	Hard:1.2-4.0 Soft: 2.0-6.0	Hard:1.2-4.8 Soft: 3.0-8.0	Hard:1.2-5.0 Soft: 3.0-9.0	Hard: 2.0-5.5 Soft: 3.0-10.0
Max. wire feeding value (mm)	10000	10000	10000	10000
Min. wire feeding value (mm)	0.01	0.01	0.01	0.01
Max. wire feeding speed (m/min)	80	80	80	80
Max. wire feeding length	Unlimited	Unlimited	Unlimited	Unlimited
Axis number	12	12	12	12
Total output power of servo motors (kw)	21.8KW	23KW	26.7KW	29.5KW
Program storage(plus)	3000	3000	3000	3000
Compressor air pressure (kg/cm)	5-6	5-6	5-6	5-6
Probe number	3	3	3	3
Packing Size L*W*H(cm)	275*160*192 145*145*130	275*160*192 145*145*130	300*180*225 161*161*141	300*180*225 161*161*141
The feeding tray	400KG	400KG	500KG	500KG
Net weight(kg)	4100	5000	5500	6000

Model	GT60-12R	GT80-12R	GT100-12R
Wire dia(mm)	Hard: 2.0-6.0 Soft: 3.0-10.0	Hard: 3.0-8.0 Soft: 5.0-12.0	Hard: 4.0-10.0 Soft: 6.0-16.0
Copper bar(W*T*)	40*4 mm	50*5 mm	60*6mm
Max. wire feeding value (mm)	10000	10000	10000
Min. wire feeding value(mm)	0.01	0.01	0.01
Max. wire feeding speed(m/min)	80	70	60
Max. wire feeding length	Unlimited	Unlimited	Unlimited
Axis number	12	12	12
Total output power of servo motors (kw)	38.4KW	55.0KW	88.5KW
Program storage (plus)	3000	3000	3000
Compressor air pressure (kg/cm)	5-6	5-6	5-6
Probe number	3	3	3
The feeding tray	500KG	1000KG	1000KG
Size(L*W*H)cm	350*210*220 161*161*141	350*210*220 205*205*150	350*220*230 205*205*150
Net weight(kg)	7500	9000	11000
