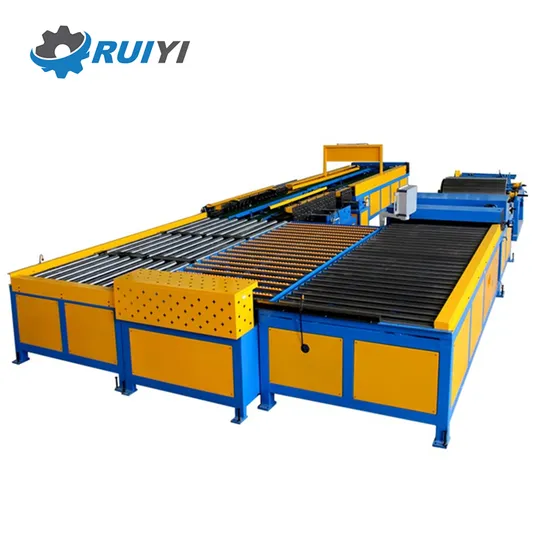

High Quality Speed HVAC Square Rectangular Galvanized Stainless Steel Auto Air Duct Tube Pipe Manufacture Line

Product Description

FEATURES
1. U shape structure, compact equipment arrangement, less land occupation, suitable use for small size plants.
2. Adopt servo-driven pneumatic manipulator pushing material, with lock seams, not only fast, but also more precise positioning.
3. Lock forming device changes the usual processing methods, save time for repetitive movement, greatly improve the production efficiency.
4. Save labor and high efficiency, can complete one piece of "L" shape duct in 22 seconds.
5. with production management function, with day count and total count.
6. Use touch-screen and keyboard input dual-mode, ensure the stability of operation.
7. Optional punching holes for reinforcing bars and laminating functions.
FUNCTION
Mainly to complete the straight ducts for TDF flange, angle steel flange and drive cleat forming, the processing capacity is 800-2500 square meters per day. just enter the size of the ducts you need to process, then the auto duct line will complete the uncoiling, leveling, beading, notching and punching, pittsburgh lock forming, TDF flange forming, angle steel flange forming. drive cleat forming, folding and shaping. optional 8 tons or 10tons hydraulic decoiler.
BASIC CONFIGURATIONS
1. An electric integrated decoiler, include 4pcs of 7 tons coils(optional 8tons or 10tons of hydraulic decoiler)
2. A support frame
3. A main machine
4. No.1 conveying platform
5. Lock forming machine(pittsburgh lock platform)
6. No.2 conveying platform
7. Duplex TDF flange forming machine
8. Duplex angle steel flange forming
9. servo feeding and folding
10. Control system
WORKING SCHEMATIC DIAGRAM
MAIN TECHNICAL DATA

Model	Thickness range(mm)	width(mm)	working speed(m/min)	Power(kw)	Weight(kg)	Dimension(mm)
ADL-VI	0.4-1.2	1300	18	30	12000	14500x4950x1500
	0.4-1.2	1600	18	32	13000	14500x5350x1500

DETAILED PICTURES
VISIT AND TRAINING
GOOD PACKAGE AND SAFTY DELIVERY
FACTORY SHOW
FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a manufacturer.
2.Q:How about the quality of your machines?
A: Our company is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
3. Q:What can you provide for after-sales service?
A: 24 hours' online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.
4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
