Zlj5441thbkf 59X-6rz Zoomlion 50 52 57 59m Concrete Pump Truck for Sale

Product Description

Product Description

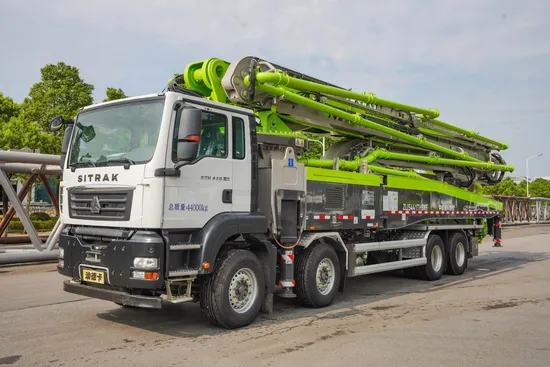

ZLJ5441THBKF 59X-6RZ Zoomlion 50 52 57 59m Concrete Pump Truck for Sale
Comply with regulations, wide range of fabrics, and good site adaptability
The axle load of the whole machine complies with the regulations, and there is no need to worry about license plate . registration, highway driving and annual inspection. The maximum fabric depth is more than 2 meters larger than that of its peers, and the fabric range is wide The outriggers occupy the smallest area per meter and are more suitable for construction in narrow sites. The opening height of the big arm is 4.5 meters smaller than that of its counterparts, making it easy to open the arm.

Low operating costs
Valve block-less pumping hydraulic system, the system consumes less energy and is more fuel-efficient Dual fuel tanks with independent functions double the life of hydraulic oil

Reliable chassis and strong battery life
Jiefang/Shantou Ka chassis, domestic first-line brand, reliable performance, Weichai/MAN engine, strong power, high market recognition, aluminum alloy 600L large fuel tank, strong endurance

Detailed Photos

Product Parameters

Main performance parameters	Unit	Value
Maximum theoretical conveying capacity	m3/h	180
Maximum outlet pressure of concrete	MPa	11.3
Rated working pressure	MPa	42
Pumping frequency	min-1	26
Concrete cylinder borexTravel	mm	Φ260x 2100
Structural form	/	59X-6RZ
Maximum cloth(Height/Radius/Depth)	m	56/51/40.47
Angle of rotation	°	±270°
Outrigger span(FrontxAfterxLongitudinal)	mm	9590*12850*10720
Product type spectrum
Product model	Chassis brand	Emission standards
ZLJ5441THBKF 56X-6RZ	Zhongqi Shandeka	China VI
ZLJ5440THBJF 56X-6RZ	Liberation	China VI
ZLJ5440THBBF 56X-6RZ	Run quickly/Benz	China VI
