Product Description Specification Note: This quote is for deposit only, For custom-made machines, the quotation needs to be quoted according to customer needs. Please contact the salesperson for details.
| Model | DSA-MC760DW | |
| Printing technology |
| Sprinkler Type | xp600/TX800 | | i3200 |
| Number of nozzles | 2 piece | 2 piece |

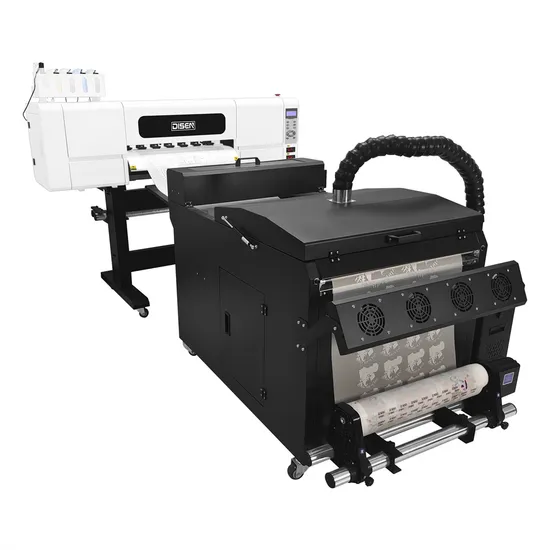

| Model description | 70CM wide heat transfer printer | 70CM wide heat transfer printer |
| Print orientation | Bidirectional printing / Unidirectional printing |
| Nozzle height | 2mm-3mm |
| Nozzle cleaning | Fully automatic cleaning, with anti-blocking flash spray function and automatic moisturizing function |
| printing speed |
| production mode | 4pass:8m²/h | | 4pass:12m²/h |
| quality mode | 6pass:6m²/h | 6pass:9m²/h |
| Precision mode | 8pass: 4m²/h | 8pass: 6m²/h |
| ink system |
| type | dth ink |
| color | 5(C/M/Y/K/W) |
| Ink supply method | Positive pressure continuous ink supply |
| capacity | 1500ml |
| configure |
| Delivery system | Standard |
| Heating system | Front and rear platform heating |
| drying system | Independently controlled cooling fan |
| medium |
| print width | 700mm | 700mm |
| print media | pet printing film |
| Maximum roll weight | 40kg | 40Kg |
| Operation |
| operating language | Chinese / English |
| operating system | WindowsXP/Win7/win10 |
| Operating environment | Best environment: 18-25ºC, humidity 35%-65%RH |
| print interface | USB |
| printing software | Maintop/photoprint |
| Other parameters |
| power supply | AC-220V-110V,50Hz/60Hz |
| power | Standby power 32W, maximum power 300W |
| box size | 1.95*0.74*0.71m(L*W*H) | 1.3*1*1.2m(L*W*H) |
| machine weight | 180kg | 150kg |
