Inline Automatic Pallet Dispenser Pallet Magazine with Storage for 10 Euro Pallets

Product Description

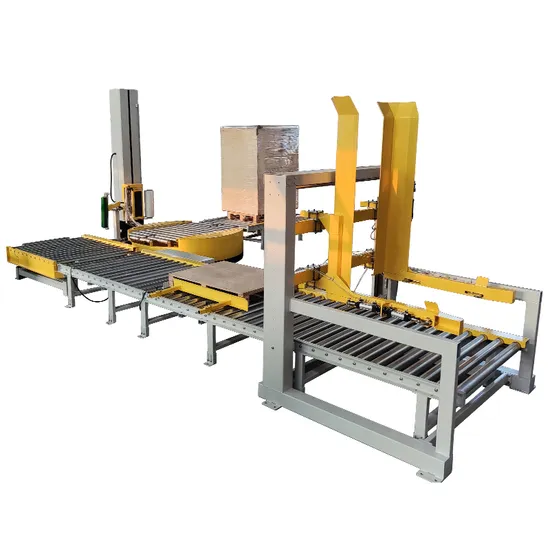

Inline Automatic Pallet Dispenser Pallet Magazine with Storage for 10 Euro PalletsProduct DescriptionThis System Consist of Pallet Dispenser Which Storage 10 Pcs Euro Pallets that Distributing One by One Onto Bottom Chain Driven Live Roller Conveyor + Pneumatic Operated Pallet Stopper that Positioning the Pallet for Palletizing + Buffer Roller Conveyor that Buffer One Palletized Pallet + Turntable Conveyor that 90 Degree Change Pallet Flow Direction + Inline Pallet Stretch Wrapper that Auto Wrapping the Palletized Pallets + Outfeed Roller Conveyor that Receive Finished Cargo for Forklift Unloading.
Pallet Dispenser or Pallet Stacker is the Vital Piece of Material Handling Equipment that can be Integrated into Production Line for Automating Pallet Stacking and Destacking. A Stack of No More than 10 Pallets can be Inserted Into the Pallet Dispenser by Forklift or Conveyor, after which the Pallets are Automatically De-stacked Individually onto Production Line via the Control of Pallet Detection Photosensors.Specifications

Model	UPD-1200 Pallet Dispenser
Pallet Size	W 800 mm x L 1200 mm
Loading Method	Forklift Loading
Distribution Speed	4 Pallets/min
Lifting System	Motor Chain Lifting
Clamping System	Pneumatic Clamping
Storage Capacity	Std. 10 Pallets (Others Opt.)
Air Supply	0.5 - 0.7 MPa
Voltage	220 VAC 1 ph / 380 VAC 3 ph 50/60 Hz
Power	0.75 Kw
Machine Size	L 1900 mm x W 1700 mm x H 1850 mm
Machine Weight	200 Kg

FeaturesPallet Dispenser
Storage 10 Euro Pallets and Distributing One by One Onto Bottom Chain Driven Live Roller Conveyor;Pneumatic Operated Pallet Stopper
Positioning the Pallet for Palletizing;Buffer Roller Conveyor
Buffer One Palletized Pallet;Turntable Conveyor
90 Degree Change Pallet Flow Direction;Inline Pallet Stretch Wrapper
Auto Wrapping the Palletized Pallets;Outfeed Roller Conveyor
Receiving Finished Cargo for Forklift Unloading;Options* Pallet Size;
* Storage Capacity;
* Roller / Chain / Turntable / Transfer Conveyor;
* Pallet Strapping Machine;
* Voltage Based on Country of Destination;
* Electrical Conponents & Motors;
