Grua Horquilla Snsc Montacargas 2.5 Ton 3 Ton 3.5 Ton 4 Ton 5 Ton 7 Ton 10 Ton Diesel Forklift with 3m 4.5m 6m Lifting Height Forklift Truck Price

Product Description

Product Description
Montacargas/Grua Horquilla SNSC Brand forklifts range from:
1. Diesel Forklift Truck: 1.5T- 35T; Rough Terrain Forklift: 1.5T-10T
2. Electric Forklift Truck: 1.5T-10T;
3. LPG & Gasoline Forklifts: 1.5T-7T
SNSC Customer Feedback
SNSC Forklift Group has been establised in 2010, engaged in forklift field for more than 15 years and gained very good reputation all over the world. We are aimed to provide our customers VIP forklift solutions with most cost-effective products and perfect after-sale service. We helped thousands of customers chose their most suitable material handling solutions and establish long-term business partnership,
Product Configuration

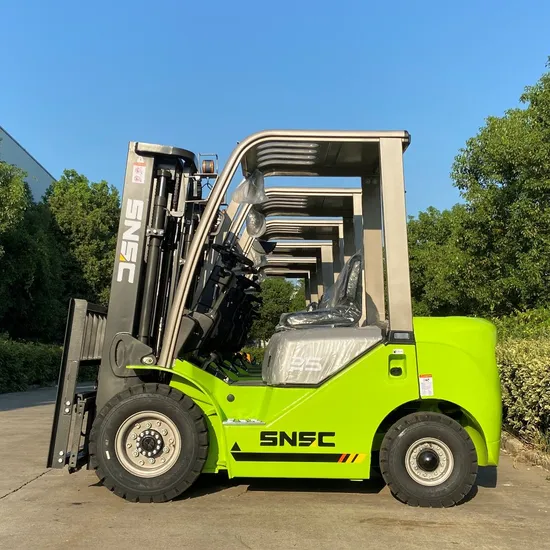

2,5 ton grua horquilla diesel forklift with japanese engine
Specifications				Unit	FD20H	FD25H
1	Features	Power type		-	Diesel	Diesel
2		Rated load		kg	2000	2500
3		Load center		mm	500	500
4		Lifting Height		mm	3000	3000
5		Free lifting height		mm	135	135
6		Fork size	LxWxT	mm	1070X122X40	1070X122X40
7		Mast Tilt Angle	Front/Read	°	6/12	6/12
8		Min. Turning Radius		mm	2240	2240
10		Min. Ground Clearance	Mast	mm	110	110
11		Overhear Guard Height		mm	2090	2090
12		Front Overhang		mm	473	473
14	Performances	Max. Travelling Speed	loaded	Km/h	19	19
15		Max. Lifting Speed	loaded/empty	mm/s	490/510	490/510
16		Max. Traction Force	loaded	KN	17	17
17		Max. Climbing Ability		°	20	20
18	Dimension	Overall Length	without fork	mm	2570	2570
19		Overall Width		mm	1160	1160
20		Mast Lowered Height		mm	1990	1990
21		Mast Extended Height		mm	4000	4000
22	Chassis	Tyre	Front	-	7.00-12-12PR	7.00-12-12PR
23			Rear	-	6.00-9-10PR	6.00-9-10PR
24		Wheel Base		mm	1600	1600
25		Wheel Thread	Front/Rear	mm	970/970	970/970
26		Weight(without load)		kg	3350	3800
27	Powertrain	Battery		V/Ah	12/90	12/90
28		Engine	Model	-	XC490BPG	XC490BPG
29			Rated Power	KW/r.p.m	37/2650	37/2650
30			Rated Torque	N.m/r.p.m	148/2000	148/2000
31			No. of cylinder	-	4	4
32			Bore x Stroke	mm	90 x 100	90 x 100
33		Displacement		L	2.54	2.54
34		Fuel Tank Capacity		L	60	60
35		Transmission/Shift		-	1/1 Automatic transmission
36		Operation Pressure		MPa	17.5	17.5

Optional Attachments SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
Company Profile
We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.
our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
Packaging & Shipping
SNSC forklift 2000kg 2500kg 3000kg 3m 4m 4.5m Seated Diesel forklift Shipping with Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.Packaging&Shipping 1*20'GP - 3 Units, 1*40'GP - 6 Units
SNSC Other products
What kinds forklift we are selling: 1. Diesel Forklift Truck: 1.5T- 35T;
2. Electric Forklift Truck: 1.5T-10T;
3. LPG & Gasoline Forklifts: 1.5T-7T;
4. Warehouse Logistic Forklift: Reach Truck / Pallet Truck / Electric Stacker/Order picker/VNA vehicles/AGV vehicles, Tractor,etc;
5.Rough terrain Forklift: 1.5T-10T;
6: Telescopic Forklift/Telehandler: 2.5T-35T;
7. Container reach stacker, Empty container handler;
8. Loaders, Backhoe loaders, Skid Steer Loaders, Excavators, Cranes, Truck;
9. Aerial Platform: Self-propelled Scissor platform, Electric/Diesel Articulated Boom lift, Electric/Diesel Telescopic Boom lift.

---
