Mk1 350t1 CNC Cylindrical Grinding Machine, Mk1650t1 CNC End Face and Cylindrical Grinding Machine

Product Description

Product Description
Main functions and features

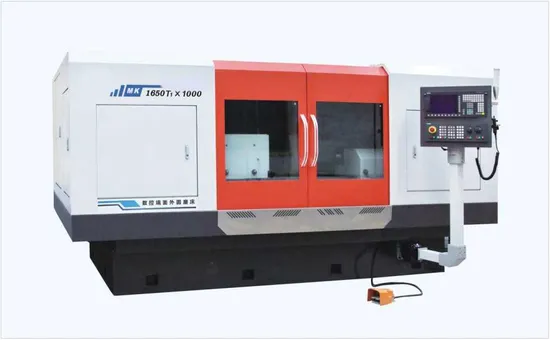

• MK1650T1 CNC (end face) cylindrical grinding machine is a large-scale mobile CNC machine tool designed and manufactured by our company. This series of machine is suitable for large-scale shaft parts production in batches or mass production. It is a large-scale CNC cylindrical grinding machine with easy operation, reliable performance and high machining accuracy.
• Using Siemens 828 s three-axis linkage CNC system. The AC servo motor controls the headstock (C axis), the grinding wheel frame feed (X axis) and the movement of the cross slide (Z1 axis) respectively through a precision reducer.
• The grinding wheel spindle adopts a high-rigidity dynamic and static pressure spindle system, which has the characteristics of high rotation accuracy and strong load-bearing capacity. The linear speed of the grinding wheel is up to 45m/s.
• The headstock (C axis) is driven by a synchronous belt wheel controlled by a servo motor to ensure stable and reliable grinding. Can realize automatic loading and unloading.
• The tailstock adopts a servo constant force automatic tightening mechanism. The tightening force is adjustable to ensure grinding accuracy.
• Various types of diamond dressing devices can be selected for dressing of grinding wheels to realize precise dressing of complex grinding wheel shapes and automatic compensation.
• Equipped with end face positioning and external circle online measuring instrument to ensure the dimensional stability of the workpiece.
• Optional CNC or hydraulic drive automatic tracking center frame, used for slender shaft parts processing shaft parts processing.

Product Parameters

Description External grinding diameter	(unit) (mm)	MK1350T1 φ30~φ500	MK1650T1 φ30~φ500
Maximum grinding length	(mm)	1000,1500,2000,3000	1000,1500,2000,3000
Center height	(mm)	270	270
Center distance	(mm)	1100,1600,2100,3100	1100,1600,2100,3100
headstock center	(morse)	6#	6#
tailstock center	(morse)	6#	6#
Max. weight of workpiece	(Kg)	1000	1000
Wheel size	(mm)	φ750x(90-280)×305	φ750x(90-280)×305
Linear speed of grinding wheel	(m/s)	45	45
Spindle speed of grinding wheel	(r/min)	1146	1146
XMin. Pulse amount of X-axis	(mm)	0.001	0.001
Z1Min.Pulse amount of Z-axis	(mm)	0.001	0.001
XX-axis servo motor	(Nm)	22,22,22,22	22,22,22,22
Z1Z-axis servo motor	(Nm)	22,22,22,22	22,22,22,22
Total capacity of motor	(KW)	35	35
